Material selection
Select EPDM for outdoor weathering, silicone for higher temperature, PVC for economical interior trim and NBR for oil-prone equipment.
DRAWING-BASED CUSTOM PARTS

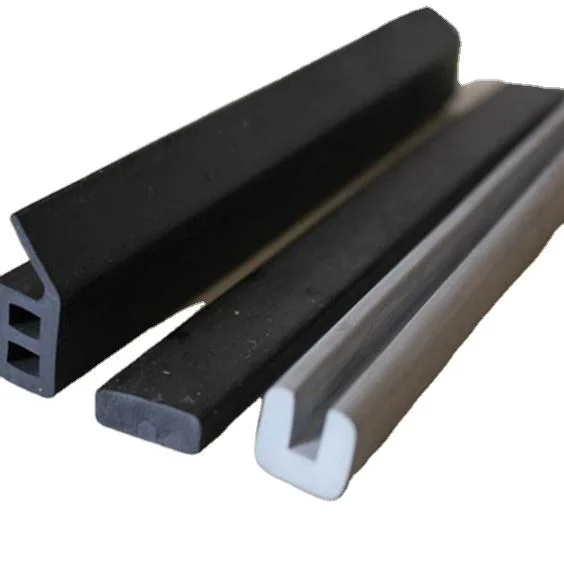

Custom T-Shaped Rubber Door and Window Seals
Custom T-profile seals that lock into a slot or seam while providing a flexible weather and vibration barrier.
Extruded or cut T-shaped rubber seals for doors, windows and panel systems requiring a durable compression lip or anchoring stem.
Engineered Custom T-Shaped Rubber Door and Window Seals
T-shaped seals use a stem to retain the profile in a channel or joint and a flexible head to close a gap. Material and durometer are chosen around weathering, heat, chemical exposure and the force available to compress the sealing section.
Material approach
EPDM and silicone T-profiles provide durable outdoor sealing and stay flexible through changing seasons.
Key features
- Channel-retained stem
- flexible sealing head
- weather resistance
- custom durometer
- continuous-length supply.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Material | EPDM, silicone or PVC rubber |
|---|---|
| Thickness range | Profile-dependent; typical head thickness 2-15 mm |
| Typical thickness | 5-8 mm sealing head |
| Size range | Custom extruded profiles from 3-80 mm overall width |
| Temperature range | -40 to 120 C EPDM; silicone to 200 C |
| Hardness range | Shore A 40-90 |
| Tolerance | Extrusion tolerance by profile size; cut length typically +/-1 mm |
| Standards | RoHS and REACH declarations; automotive and building-system specifications by selected compound. |
MATERIAL SELECTION
T-Shaped Rubber Door and Window Seals Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Primary strength | Selection focus | Best fit |
|---|---|---|---|
| EPDM rubber | EPDM and silicone T-profiles provide durable outdoor sealing and stay flexible through changing seasons. | Select EPDM for outdoor weathering, silicone for higher temperature, PVC for economical interior trim and NBR for oil-prone equipment. | Vehicle doors, windows, access panels, building systems, equipment covers and removable service doors. |
| silicone rubber | Compression recovery, tear resistance, UV resistance, ozone resistance and friction vary by compound and profile design. | Select EPDM for outdoor weathering, silicone for higher temperature, PVC for economical interior trim and NBR for oil-prone equipment. | Vehicle doors, windows, access panels, building systems, equipment covers and removable service doors. |
| PVC | Compression recovery, tear resistance, UV resistance, ozone resistance and friction vary by compound and profile design. | Select EPDM for outdoor weathering, silicone for higher temperature, PVC for economical interior trim and NBR for oil-prone equipment. | Vehicle doors, windows, access panels, building systems, equipment covers and removable service doors. |
PRODUCT EXAMPLES

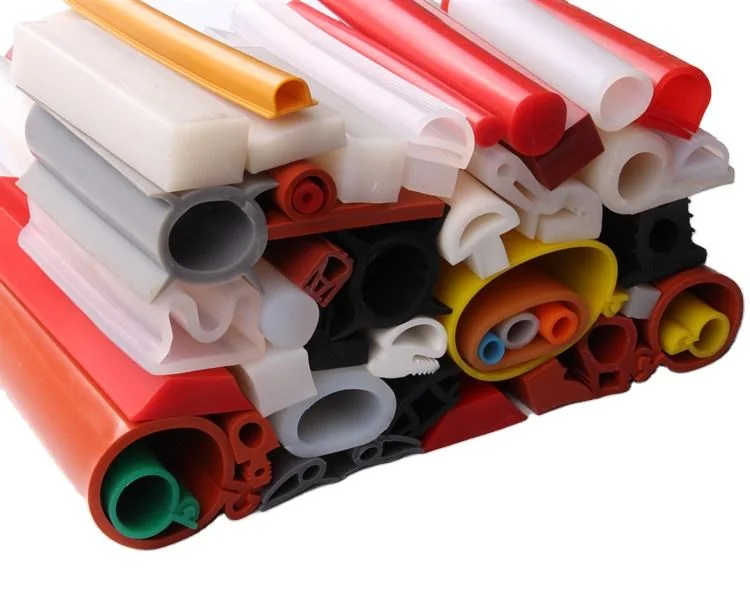

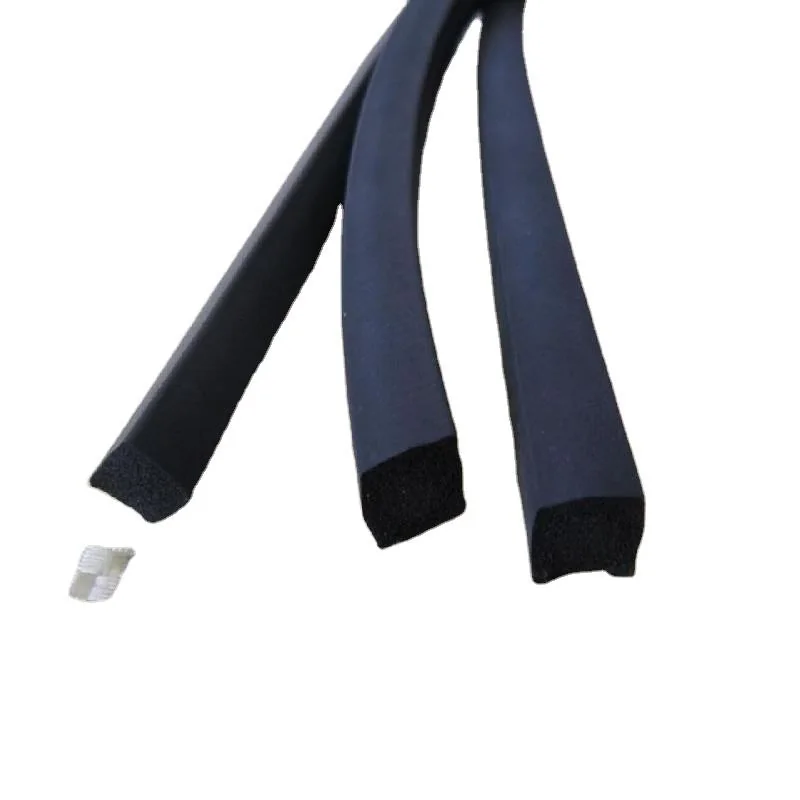

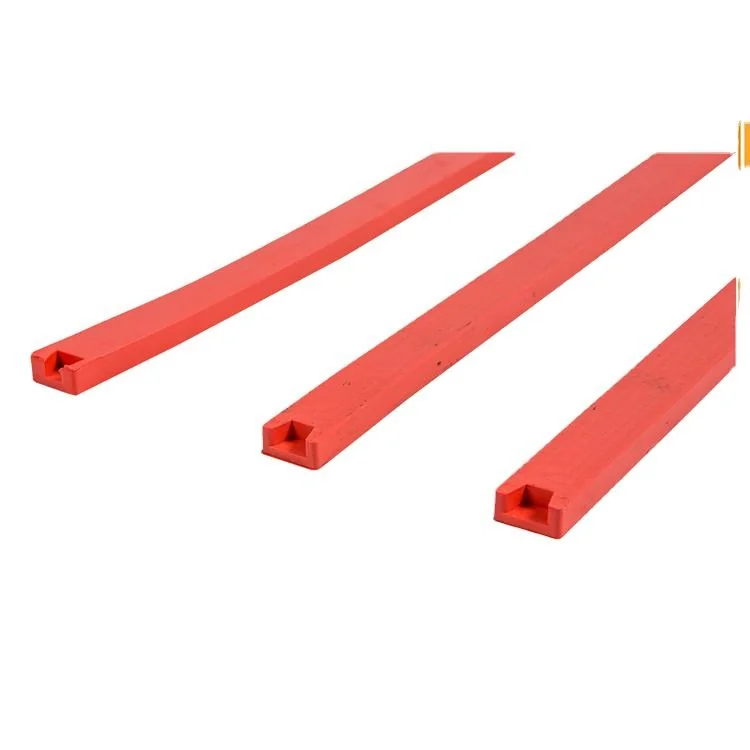

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Provide channel dimensions, panel thickness and the closing-force limit to design the stem and sealing bulb correctly.
DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Geometry and thickness
Keep the retaining stem matched to the actual slot and aim for even compression along the seal head.
Assembly performance
A stiffer profile improves retention but can raise closing force; prototype the complete door or window for fit and compression.
Production route
Provide channel dimensions, panel thickness and the closing-force limit to design the stem and sealing bulb correctly.
Applications / Where It Fits
Extruded or cut T-shaped rubber seals for doors, windows and panel systems requiring a durable compression lip or anchoring stem. The final specification is established around the drawing and operating requirements.
When This Part May Not Be the Best Choice
High-pressure fluid containment, applications with inaccurate channel geometry, or fuel exposure when using EPDM.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Manufacturing process | Rubber extrusion, vulcanization, profile cutting, splicing and corner fabrication |
| Adhesive options | None for channel-fit profiles; acrylic PSA or mounting tape for surface-applied variants. |
| Surface options | Smooth, flocked, matte, co-extruded, coloured and lubricated finishes. |
| Custom options | Profile cross-section, durometer, colour, length, spliced rings, corner mouldings, flocking and adhesive. |
| Standards | RoHS and REACH declarations; automotive and building-system specifications by selected compound. |
Drawing Requirements
Recommended drawing formats
Please include
- retaining-slot dimensions
- panel thickness
- gap size
- closing force and required profile length
For a precise custom t-shaped rubber door and window seals quotation, provide retaining-slot dimensions, panel thickness, gap size, closing force and required profile length.
Frequently Asked Questions
How is a T-shaped seal retained?
The T stem is designed to fit a channel, kerf or joint so the profile is mechanically held in place.
Can the seal be made as a continuous loop?
Yes. Profiles can be cut, spliced or molded at corners to form a closed frame.
What hardness is suitable for a door seal?
Mid-range hardness is common, but the correct choice depends on channel grip, gap size and acceptable closing force.
Can EPDM T-seals be used outside?
Yes. EPDM is widely used for outdoor weatherstripping because it resists UV, ozone and rain exposure.
What should a drawing include for custom t-shaped rubber door and window seals?
Include retaining-slot dimensions, panel thickness, gap size, closing force and required profile length.
Can custom t-shaped rubber door and window seals be supplied for production assembly?
Yes. Provide channel dimensions, panel thickness and the closing-force limit to design the stem and sealing bulb correctly. Delivery format, liner configuration and packaging are specified for the assembly workflow.
How is the right custom t-shaped rubber door and window seals construction selected?
Select EPDM for outdoor weathering, silicone for higher temperature, PVC for economical interior trim and NBR for oil-prone equipment. The drawing and operating conditions establish the final construction.
