Substrate Before Adhesive
Choose the base material for sealing, cushioning or protection first. Adhesive selection should follow the functional material choice.
DRAWING-BASED CUSTOM PARTS
Custom Adhesive-Backed Die-Cut Parts
Precision-cut parts that combine a functional substrate with a bond selected for the assembly environment.
Share the substrate, mating surface, temperature and placement workflow with your drawing for an adhesive construction review.
Made for Your Application
This category covers die-cut components where the substrate and adhesive are engineered as one assembly. It is useful when a part must locate quickly on a housing, panel or moving component while retaining its cushioning, sealing or protective role.
Material approach
Substrate and bonding system can be matched independently, allowing a soft foam, durable rubber or heat-stable silicone to use the attachment method required by the build.
Key features
- Die-cut profiles
- removable or permanent PSA choices
- optional liners and pull tabs
- kiss-cut sheets
- roll or piece packing.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Part type | Custom adhesive-backed die-cut part |
|---|---|
| Available substrates | Foam, felt, rubber and silicone options |
| Thickness range | Substrate and construction dependent |
| Profile tolerance | Drawing review required |
| Thickness tolerance | Material grade dependent |
| Adhesive options | Selected around mating surface and environment |
| Liner configuration | Project dependent |
| Delivery format | Individual parts, sheets, kiss-cut liner or rolls |
| Bond performance | Surface and application dependent |
MATERIAL SELECTION
Adhesive-Backed Die Cut Parts Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Key Property | Review Focus | Best For |
|---|---|---|---|
| EPDM Foam | Compression sealing | Confirm surface and weather exposure | Adhesive-backed sealing interfaces |
| EVA Foam | Cushioning and spacing | Confirm load and contact surface | Protective pads and spacers |
| Felt | Surface protection | Confirm abrasion and surface cleanliness | Low-scratch contact pads |
| Silicone Rubber | Temperature-tolerant flexibility | Confirm adhesion and environment | Specialized equipment interfaces |
PRODUCT EXAMPLES

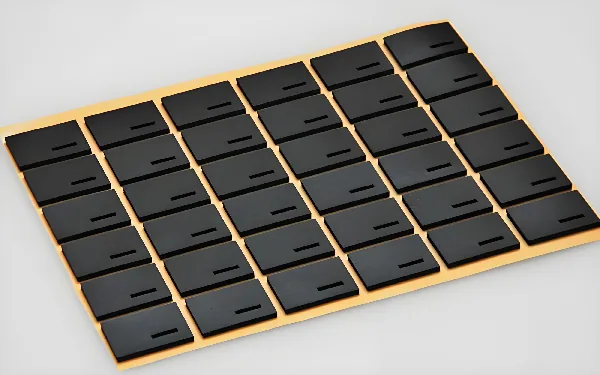

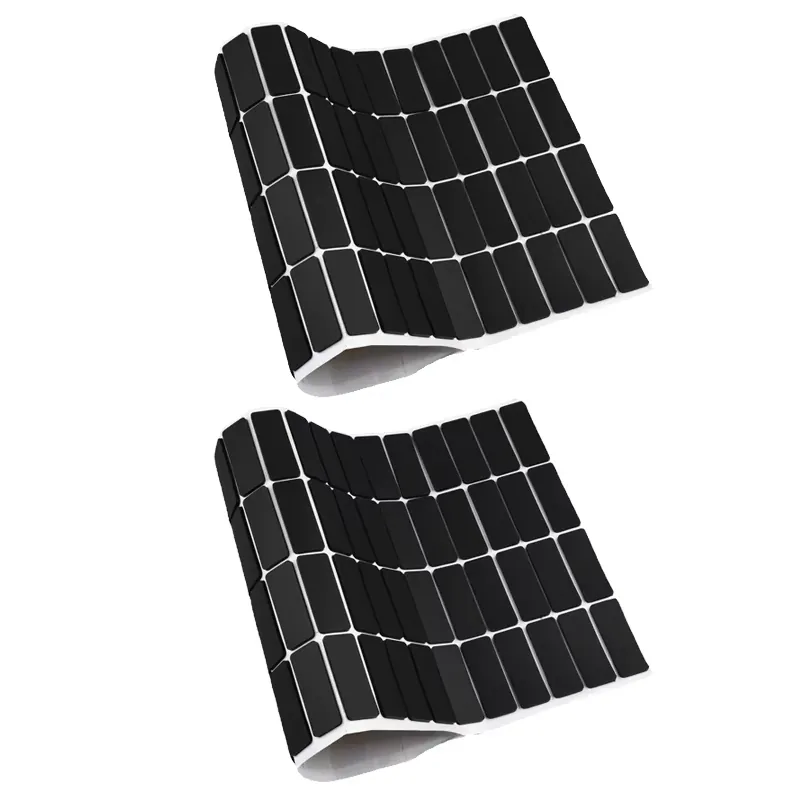

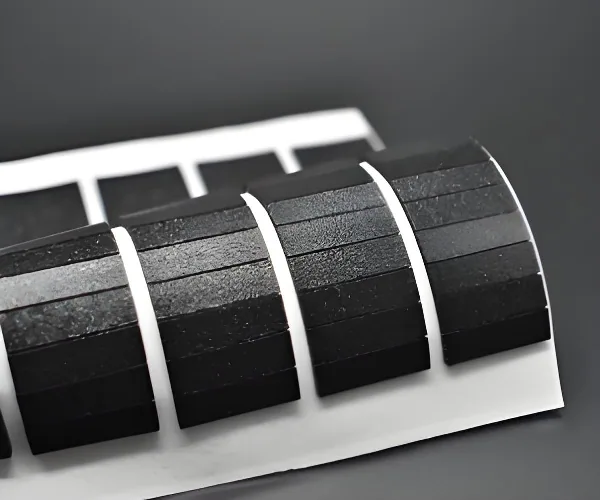

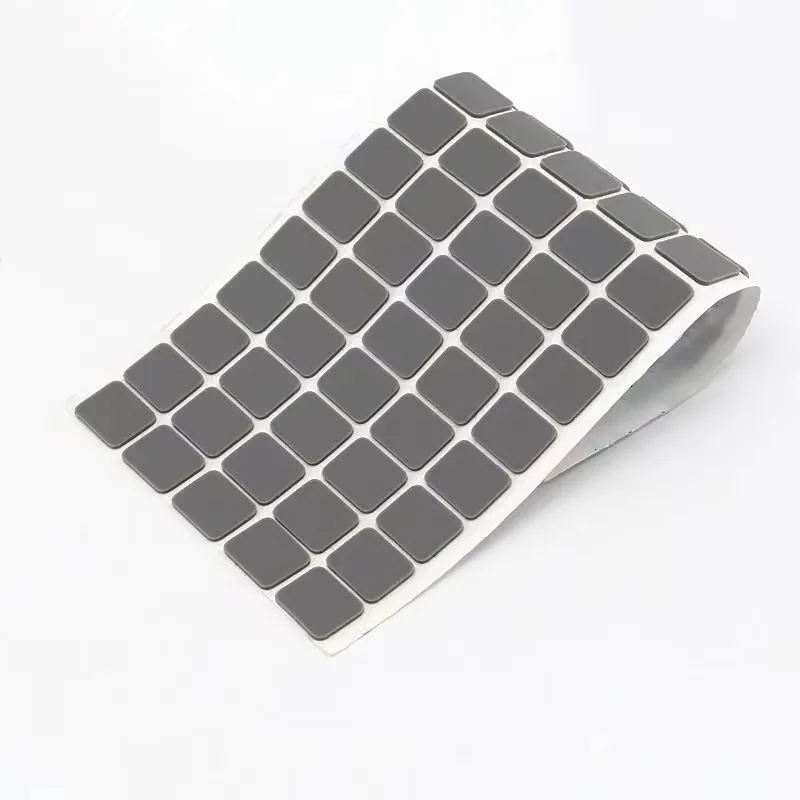

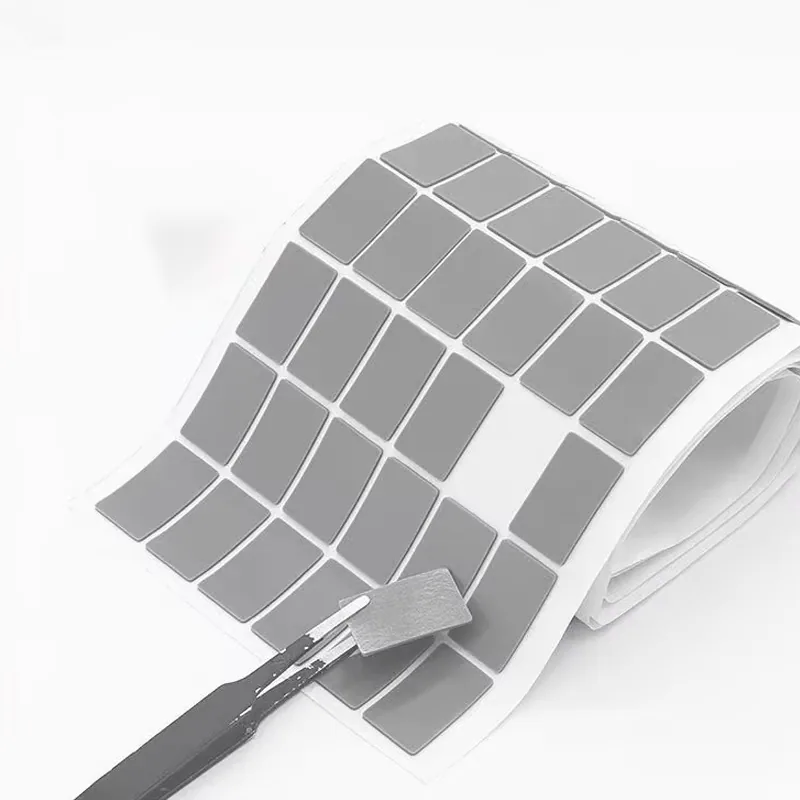

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Liner selection, adhesive coat weight and nesting are set after reviewing the mating surface and assembly method.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →Kiss Cutting
Liner-retained parts and pull-tab layouts for placement workflows.
Kiss Cutting →Adhesive Backing
PSA and liner constructions reviewed around the mating surface and assembly method.
Adhesive Backing →Industrial Laminating
Layered material constructions reviewed as a complete assembly.
Industrial Laminating →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Mating Surface
Describe surface finish, cleanliness, texture and any coating. Bond performance is evaluated against the actual production surface.
Liner and Placement
Specify manual or automated placement, liner removal direction and any pull-tab or kiss-cut requirement.
Service Conditions
Temperature, humidity, cleaners, fluids and repositioning needs all affect adhesive construction review.
Applications / Where It Fits
Adhesive-backed part design starts with the functional substrate, then matches adhesive and liner construction to the actual mating surface and workflow.
When This Part May Not Be the Best Choice
High-load structural joints, contaminated bonding surfaces, or assemblies requiring repeated repositioning after application.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Cutting | Die cutting / kiss cutting / CNC knife cutting after review |
| Adhesive | PSA construction selected after surface review |
| Delivery format | Individual parts / sheets / kiss-cut liner / rolls |
| Prototype | Project review available |
| Production | Prototype to production-volume review |
| Drawing formats | PDF / DXF / DWG / STEP |
| Inspection | Critical requirements confirmed during drawing review |
| Secondary operations | Adhesive lamination, liner pull tabs and zoned adhesive where suitable |
Drawing Requirements
Recommended drawing formats
Please include
- Overall dimensions
- Thickness
- Critical tolerances
- Quantity
- Base material / substrate
- Mating surface
- Placement workflow
- Temperature / environmental exposure
- Liner and pull-tab requirement
No drawing available? Send the substrate, mating surface, placement method, temperature and required liner format for feasibility review.
Frequently Asked Questions
How do I choose adhesive backing for a custom part?
Start with the substrate and actual mating surface, then provide temperature, fluids, placement method and service requirements for review.
Can adhesive be applied only to selected areas?
Zoned adhesive and no-adhesive areas can be reviewed when they are clearly identified on the drawing.
Can parts be kiss-cut on a release liner?
Kiss-cut formats can be reviewed for suitable material and adhesive constructions.
Can you add pull tabs or liner breaks?
Yes. Include the placement direction, manual or automated workflow and required liner handling.
Will adhesive bond to textured plastic?
Bond performance depends on the actual surface, cleanliness, temperature and adhesive construction; a project review is required.
Can adhesive-backed parts be supplied in rolls?
Roll, sheet and individual formats can be reviewed around the part geometry and assembly process.
Can prototypes be made?
Prototype feasibility depends on the substrate, adhesive, profile, quantity and delivery format.
Can you make adhesive-backed die cut parts to my drawing?
Yes. CAD files, PDFs, dimensioned sketches and clear reference images can be reviewed for a custom quotation.
What information is needed for a quote?
Include the drawing, material preference if known, critical dimensions, quantity and the application environment.
How is a production route selected?
The manufacturing route is reviewed against the material, profile, critical requirements, quantity and delivery format rather than assumed from the part name.
