Material selection
Choose EPDM foam for outdoor sealing and anti-rattle, silicone foam for high heat and PE foam for a firmer spacer effect.
DRAWING-BASED CUSTOM PARTS
EPDM Foam Washers
Compressible EPDM foam rings that cushion fasteners, reduce rattle and help close gaps around mounting points.
Custom die-cut EPDM foam washers for light environmental sealing, vibration control and spacing around screws and fittings.
Engineered EPDM Foam Washers
Foam washers combine a central aperture with a compressible outer ring, allowing a fastener or fitting to pass through while the foam supports a controlled seal or cushion. EPDM closed-cell foam is particularly useful where weather, splash and ozone exposure matter.
Material approach
Closed-cell EPDM resists water absorption and outdoor degradation while requiring relatively low clamp force to compress.
Key features
- Central holes and slots
- weather-resistant foam
- optional adhesive
- low-force compression
- custom outer diameters.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Material | Closed-cell EPDM foam |
|---|---|
| Thickness range | 1-20 mm |
| Typical thickness | 2-5 mm |
| Size range | Inner diameter 2-100 mm; outer diameter 5-300 mm |
| Temperature range | -40 to 120 C |
| Hardness range | Shore 00 30-65 or compression-deflection specified |
| Tolerance | Typically +/-0.20 mm inner and outer profile; thickness grade dependent |
| Standards | RoHS and REACH documentation; FMVSS 302 or UL 94 grades available by material selection. |
MATERIAL SELECTION
EPDM Foam Washers Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Primary strength | Selection focus | Best fit |
|---|---|---|---|
| EPDM foam | Closed-cell EPDM resists water absorption and outdoor degradation while requiring relatively low clamp force to compress. | Choose EPDM foam for outdoor sealing and anti-rattle, silicone foam for high heat and PE foam for a firmer spacer effect. | Outdoor fixtures, automotive trim, cabinet fasteners, HVAC panels, light sealing around screws and anti-rattle mounting points. |
| neoprene foam | Compression deflection, recovery, water resistance and density vary by selected EPDM foam grade. | Choose EPDM foam for outdoor sealing and anti-rattle, silicone foam for high heat and PE foam for a firmer spacer effect. | Outdoor fixtures, automotive trim, cabinet fasteners, HVAC panels, light sealing around screws and anti-rattle mounting points. |
| silicone foam | Compression deflection, recovery, water resistance and density vary by selected EPDM foam grade. | Choose EPDM foam for outdoor sealing and anti-rattle, silicone foam for high heat and PE foam for a firmer spacer effect. | Outdoor fixtures, automotive trim, cabinet fasteners, HVAC panels, light sealing around screws and anti-rattle mounting points. |
PRODUCT EXAMPLES

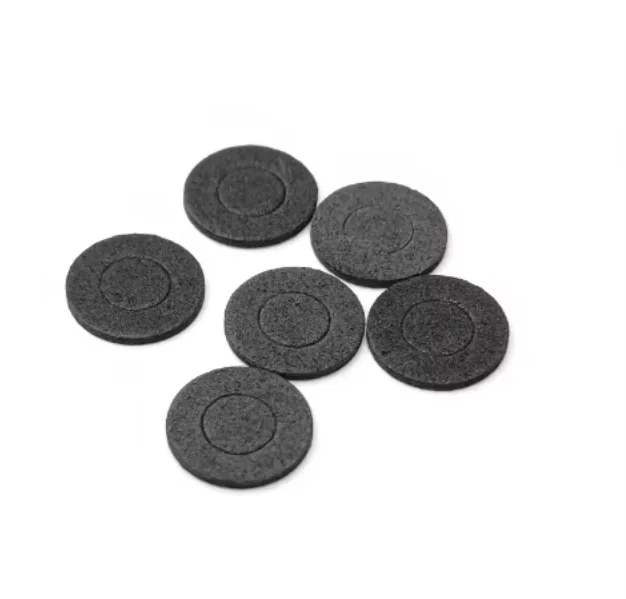

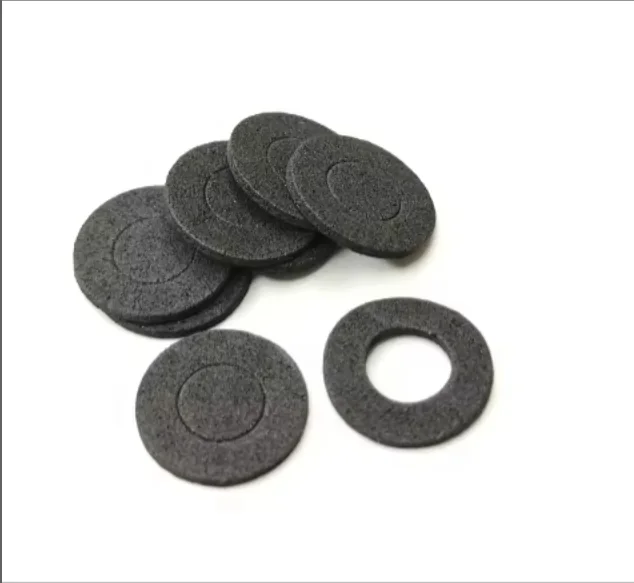

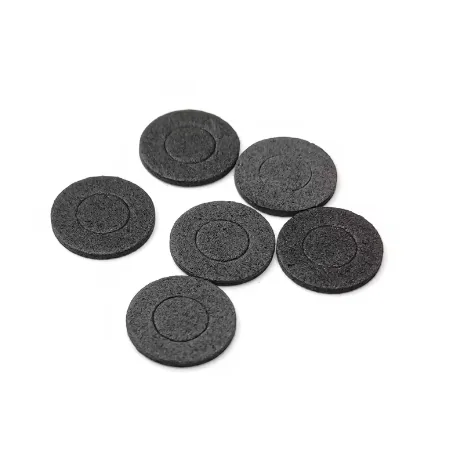

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Specify the fastener diameter, compression load and whether the washer must seal a clearance hole or only damp vibration.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →Adhesive Backing
PSA and liner constructions selected for the mating surface and assembly method.
Adhesive Backing →Custom Gasket Prototyping
Sample parts for fit, material and assembly validation before production.
Custom Gasket Prototyping →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Geometry and thickness
Provide enough radial land around the hole to prevent tearing and avoid over-compressing the foam beneath the fastener head.
Assembly performance
Use a rigid load-spreading washer if the screw head or clamp load could cut into the foam.
Production route
Specify the fastener diameter, compression load and whether the washer must seal a clearance hole or only damp vibration.
Applications / Where It Fits
Custom die-cut EPDM foam washers for light environmental sealing, vibration control and spacing around screws and fittings. The final specification is established around the drawing and operating requirements.
When This Part May Not Be the Best Choice
High-pressure fluid sealing, high-load bolted joints requiring a rigid washer, or fuel exposure.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Manufacturing process | Flatbed die cutting, rotary die cutting and adhesive lamination |
| Adhesive options | Acrylic PSA, rubber PSA, high-tack acrylic and no-adhesive options. |
| Surface options | Skin-on, skived, laminated film and custom-colour foam grades. |
| Custom options | Inner diameter, outer diameter, thickness, slit, adhesive, pull tab, colour and sheet or roll format. |
| Standards | RoHS and REACH documentation; FMVSS 302 or UL 94 grades available by material selection. |
Drawing Requirements
Recommended drawing formats
Please include
- fastener diameter
- hole clearance
- clamp load
- compressed thickness and sealing objective
For a precise epdm foam washers quotation, provide fastener diameter, hole clearance, clamp load, compressed thickness and sealing objective.
Frequently Asked Questions
Can EPDM foam washers be self-adhesive?
Yes. Adhesive-backed washers are commonly used to hold the part in place before fastening.
Will foam washers seal around a screw?
They can provide a light compression seal when the geometry and clamp force are designed for it; validate the complete assembly for ingress.
Can a foam washer have a slit for retrofit installation?
Yes. A radial slit can be die cut so the washer can be placed around an existing cable or fastener.
Are EPDM foam washers UV resistant?
EPDM is well suited to outdoor weathering and ozone exposure.
What should a drawing include for epdm foam washers?
Include fastener diameter, hole clearance, clamp load, compressed thickness and sealing objective.
Can epdm foam washers be supplied for production assembly?
Yes. Specify the fastener diameter, compression load and whether the washer must seal a clearance hole or only damp vibration. Delivery format, liner configuration and packaging are specified for the assembly workflow.
How is the right epdm foam washers construction selected?
Choose EPDM foam for outdoor sealing and anti-rattle, silicone foam for high heat and PE foam for a firmer spacer effect. The drawing and operating conditions establish the final construction.
