Cork-Rubber Construction
Binder selection influences the suitable environment and handling characteristics. Identify the fluid and temperature conditions for review.
DRAWING-BASED CUSTOM PARTS
Custom Cork Gaskets
Compressible cork-based gaskets for covers, flanges and equipment interfaces where conformability matters.
Include the fluid, flange condition, clamp load and drawing so the cork gasket construction can be reviewed.
Made for Your Application
Cork gasket material combines cellular cork with a rubber binder to make flat seals that accommodate cast-surface variation and moderate bolt loading. Die cutting permits economical custom outlines, holes and narrow webs for maintenance parts and production assemblies.
Material approach
The granular structure conforms to irregular flange faces while the elastomeric binder improves handling and resilience.
Key features
- Conformable granular surface
- easy die cutting
- moderate oil resistance options
- custom bolt-hole patterns
- low tooling cost.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Part type | Custom die-cut cork gasket |
|---|---|
| Available materials | Cork and cork-rubber constructions subject to review |
| Thickness range | Construction and joint dependent |
| Maximum sheet / part size | Project dependent |
| Profile tolerance | Drawing review required |
| Thickness tolerance | Material construction dependent |
| Adhesive options | PSA where suitable for placement |
| Delivery format | Individual parts, nested sheets or kits |
| Fluid / temperature | Binder and application dependent |
MATERIAL SELECTION
Cork Gaskets Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Key Property | Review Focus | Best For |
|---|---|---|---|
| Cork | Compressible sealing and vibration damping | Confirm binder, fluid exposure, clamp load and flange condition | Equipment covers and serviceable interfaces |
PRODUCT EXAMPLES

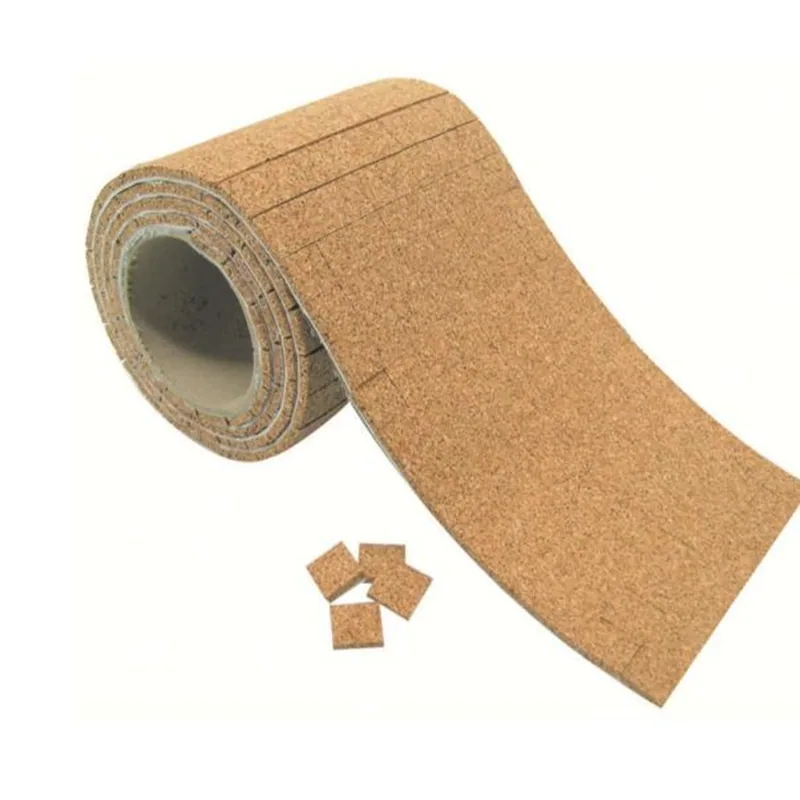

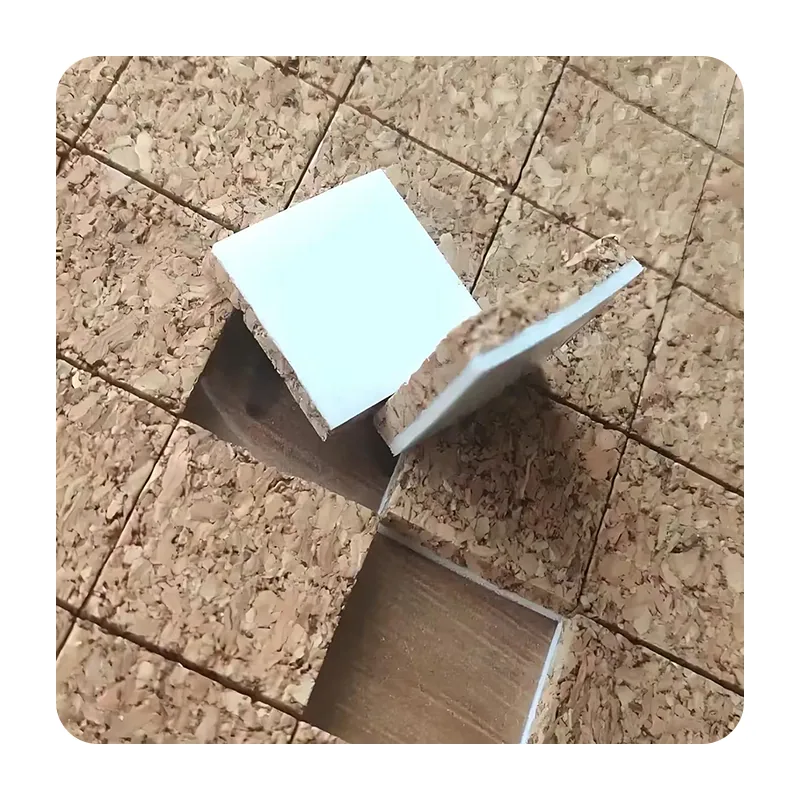

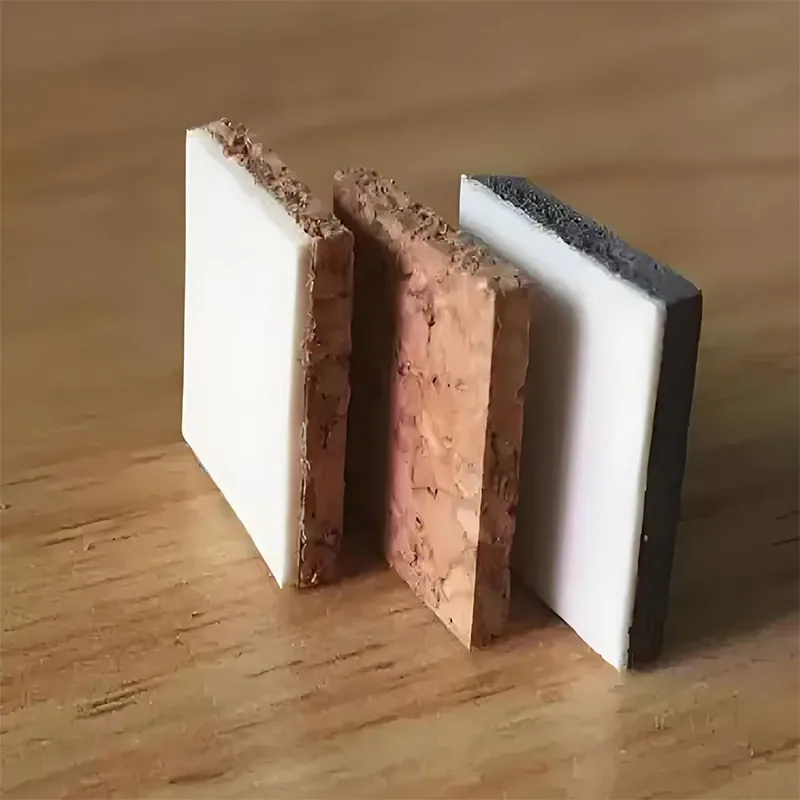

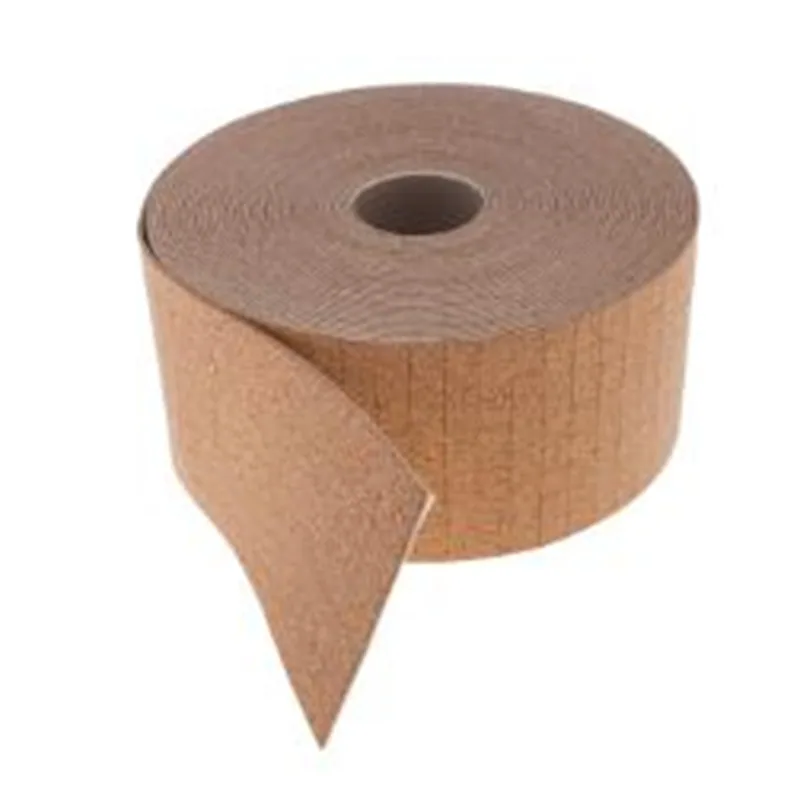

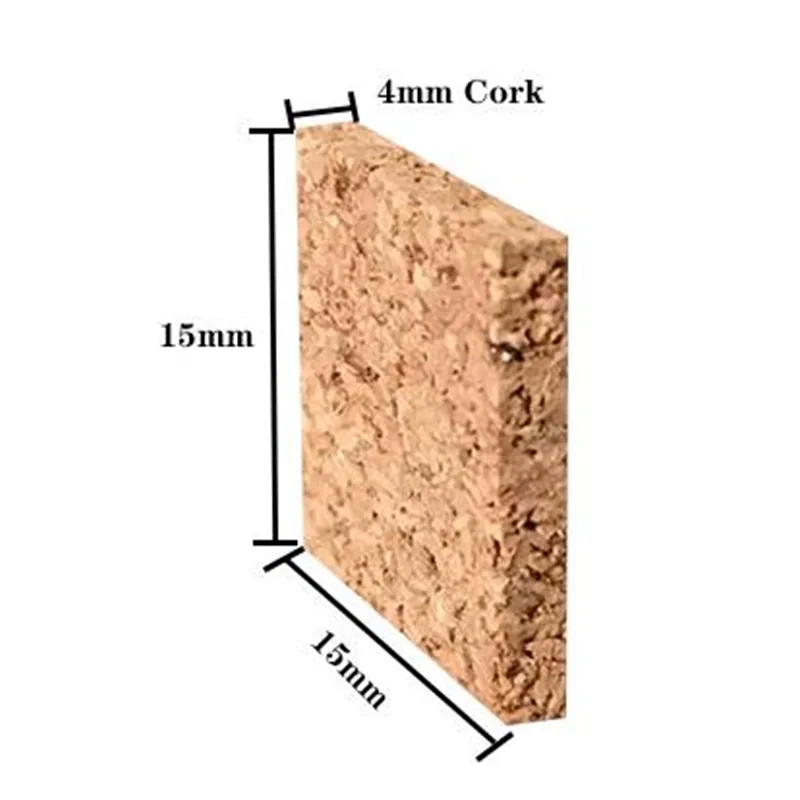

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Punching rules and minimum bridges are adjusted to the cork grain and gasket width.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →CNC Knife Cutting
A flexible route for complex profiles and variable project volumes.
CNC Knife Cutting →Industrial Laminating
Layered material constructions reviewed as a complete assembly.
Industrial Laminating →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Flange Surface and Clamp Load
Cork gaskets are selected around surface irregularity, flange width and even clamp load. Include these details with the drawing.
Thickness and Compression
Specify the available gap and desired compressed condition. Final thickness depends on the selected construction and joint design.
Fluid Exposure
Do not assume a cork construction is compatible with a fluid. Confirm the actual media, temperature and exposure duration.
Applications / Where It Fits
Cork gasket construction should be reviewed with the fluid, flange surface, clamp load, required conformability and the selected cork-binder system.
When This Part May Not Be the Best Choice
Strong solvents, high-pressure chemical process lines, steam service, or long exposure above the material heat limit.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Cutting | Die cutting / CNC knife cutting after drawing review |
| Adhesive | PSA where suitable for placement |
| Delivery format | Individual parts / nested sheets / kits |
| Prototype | Project review available |
| Production | Prototype to production-volume review |
| Drawing formats | PDF / DXF / DWG / STEP |
| Inspection | Critical requirements confirmed during drawing review |
| Secondary operations | Lamination, nested layouts and kit packing where suitable |
Drawing Requirements
Recommended drawing formats
Please include
- Overall dimensions
- Thickness
- Critical tolerances
- Quantity
- Flange and bolt pattern
- Fluid / media
- Operating temperature
- Clamp-load condition
- Required compressed condition
No drawing available? Send the flange geometry, fluid exposure, thickness, clamp condition and required gasket outline for review.
Frequently Asked Questions
When is cork suitable for a gasket?
Cork constructions are reviewed around the flange surface, clamp load, fluid exposure, temperature and required conformability.
How do I specify a custom cork gasket?
Provide the outline, thickness, bolt pattern, fluid exposure, flange condition and quantity.
Can cork gaskets include bolt holes and cutouts?
Yes. Include all holes, cutouts and critical sealing dimensions on the drawing.
Can cork be used with oil or fluids?
Compatibility depends on the binder, actual fluid, temperature and exposure duration; it must be reviewed for the application.
How should cork gasket thickness be chosen?
Thickness is considered with surface irregularity, available gap, clamp load and the selected cork construction.
Can cork gaskets be supplied in kits?
Individual parts, nested sheets and kit packing can be reviewed around the service or assembly workflow.
Can prototypes be reviewed?
Prototype feasibility depends on construction, profile, quantity and delivery requirements.
Can you make cork gaskets to my drawing?
Yes. CAD files, PDFs, dimensioned sketches and clear reference images can be reviewed for a custom quotation.
What information is needed for a quote?
Include the drawing, material preference if known, critical dimensions, quantity and the application environment.
How is a production route selected?
The manufacturing route is reviewed against the material, profile, critical requirements, quantity and delivery format rather than assumed from the part name.
