Material selection
Select solid silicone for durable compression sealing and silicone sponge for low-clamp-force gap filling.
DRAWING-BASED CUSTOM PARTS
Custom Die-Cut Silicone Gaskets
Flexible silicone gasket profiles cut to your drawing for stable sealing across hot, cold and weather-exposed assemblies.
Custom solid-silicone gaskets with precise apertures, bolt patterns and thicknesses for resilient environmental sealing.
Engineered Custom Die-Cut Silicone Gaskets
Die-cut silicone gaskets provide a clean, repeatable seal around covers, flanges and access panels. The material remains flexible across a wide temperature range and can be supplied in food-contact, flame-retardant or electrically insulating grades where required.
Material approach
Silicone retains elasticity in temperature extremes and resists ozone and outdoor weathering better than many general-purpose rubbers.
Key features
- Broad temperature performance
- UV and ozone resistance
- precise die-cut geometry
- low odour
- optional food-grade and flame-retardant compounds.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Material | Solid silicone rubber |
|---|---|
| Thickness range | 0.25-12 mm |
| Typical thickness | 1-3 mm |
| Size range | 5 mm features to 1,200 x 900 mm sheets |
| Temperature range | -60 to 230 C |
| Hardness range | Shore A 20-80 |
| Tolerance | Typically +/-0.20 mm profile; +/-0.15 mm on stable sheet thicknesses |
| Standards | FDA and LFGB food-contact grades; UL 94 flame ratings and RoHS/REACH documentation by compound. |
MATERIAL SELECTION
Die-Cut Silicone Gaskets Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Primary strength | Selection focus | Best fit |
|---|---|---|---|
| General-purpose silicone | Silicone retains elasticity in temperature extremes and resists ozone and outdoor weathering better than many general-purpose rubbers. | Select solid silicone for durable compression sealing and silicone sponge for low-clamp-force gap filling. | Outdoor electronics, appliance covers, lighting housings, food equipment, laboratory instruments and high-temperature panels. |
| platinum-cured silicone | Elastic recovery, low-temperature flexibility, thermal stability and dielectric performance. | Select solid silicone for durable compression sealing and silicone sponge for low-clamp-force gap filling. | Outdoor electronics, appliance covers, lighting housings, food equipment, laboratory instruments and high-temperature panels. |
| flame-retardant silicone | Elastic recovery, low-temperature flexibility, thermal stability and dielectric performance. | Select solid silicone for durable compression sealing and silicone sponge for low-clamp-force gap filling. | Outdoor electronics, appliance covers, lighting housings, food equipment, laboratory instruments and high-temperature panels. |
PRODUCT EXAMPLES

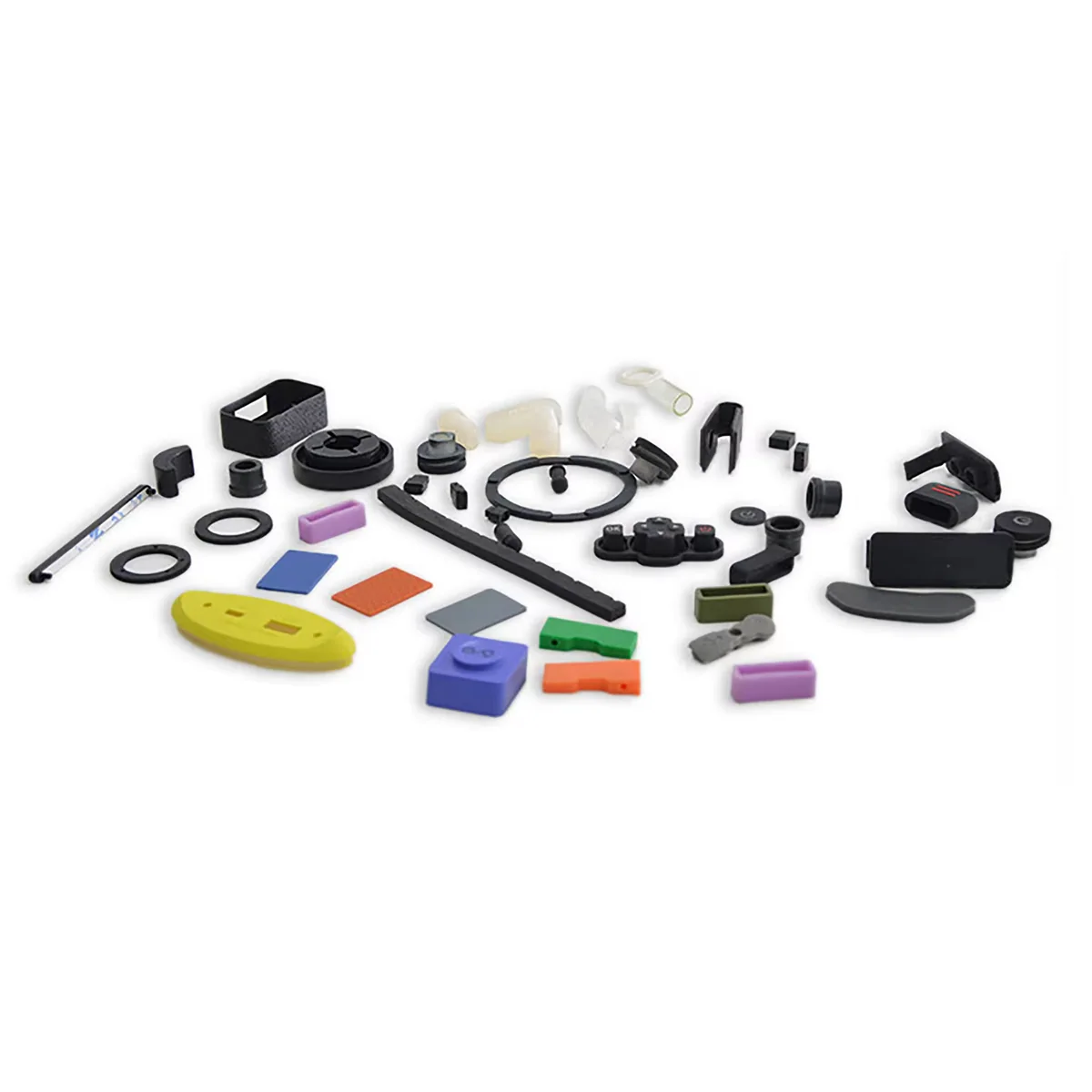

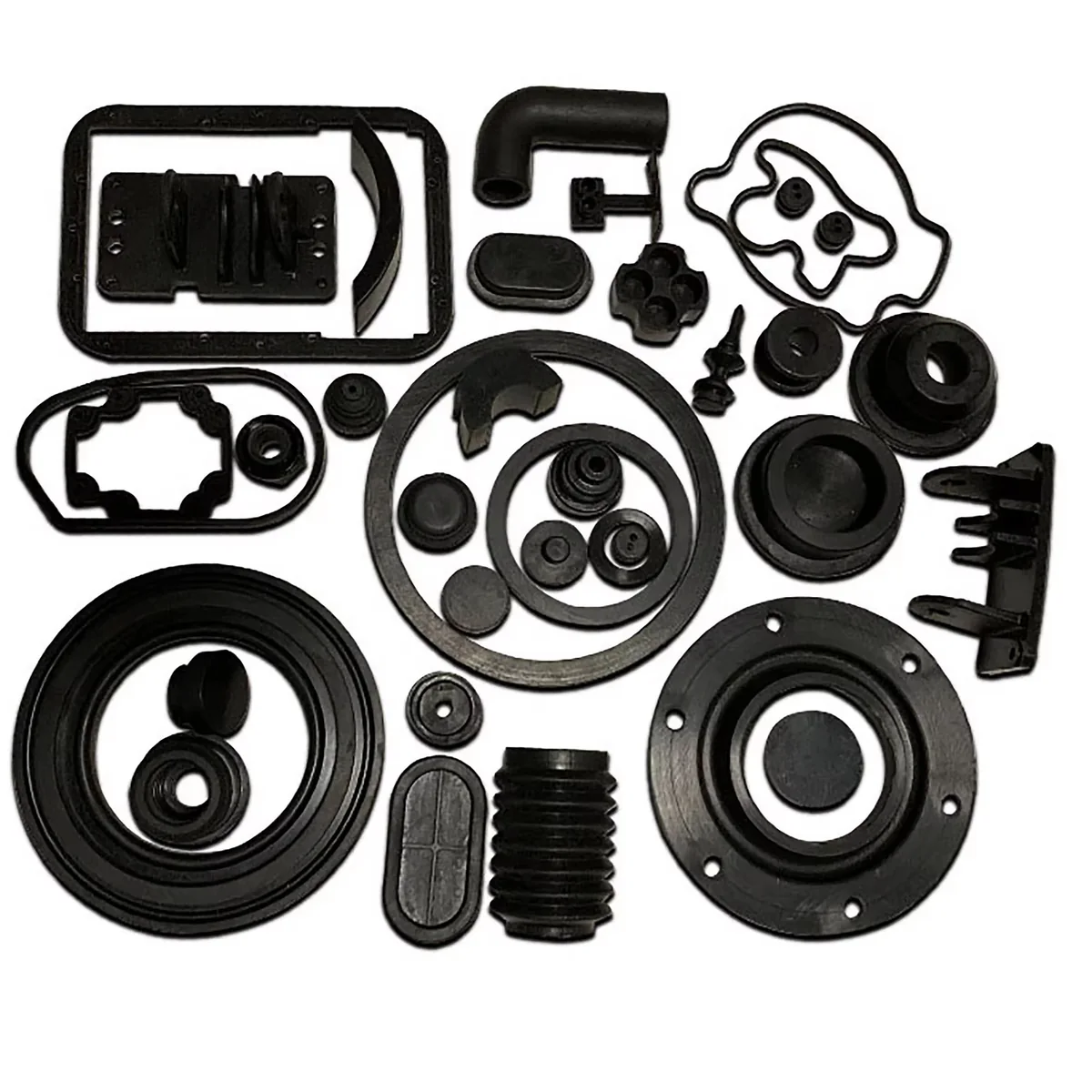

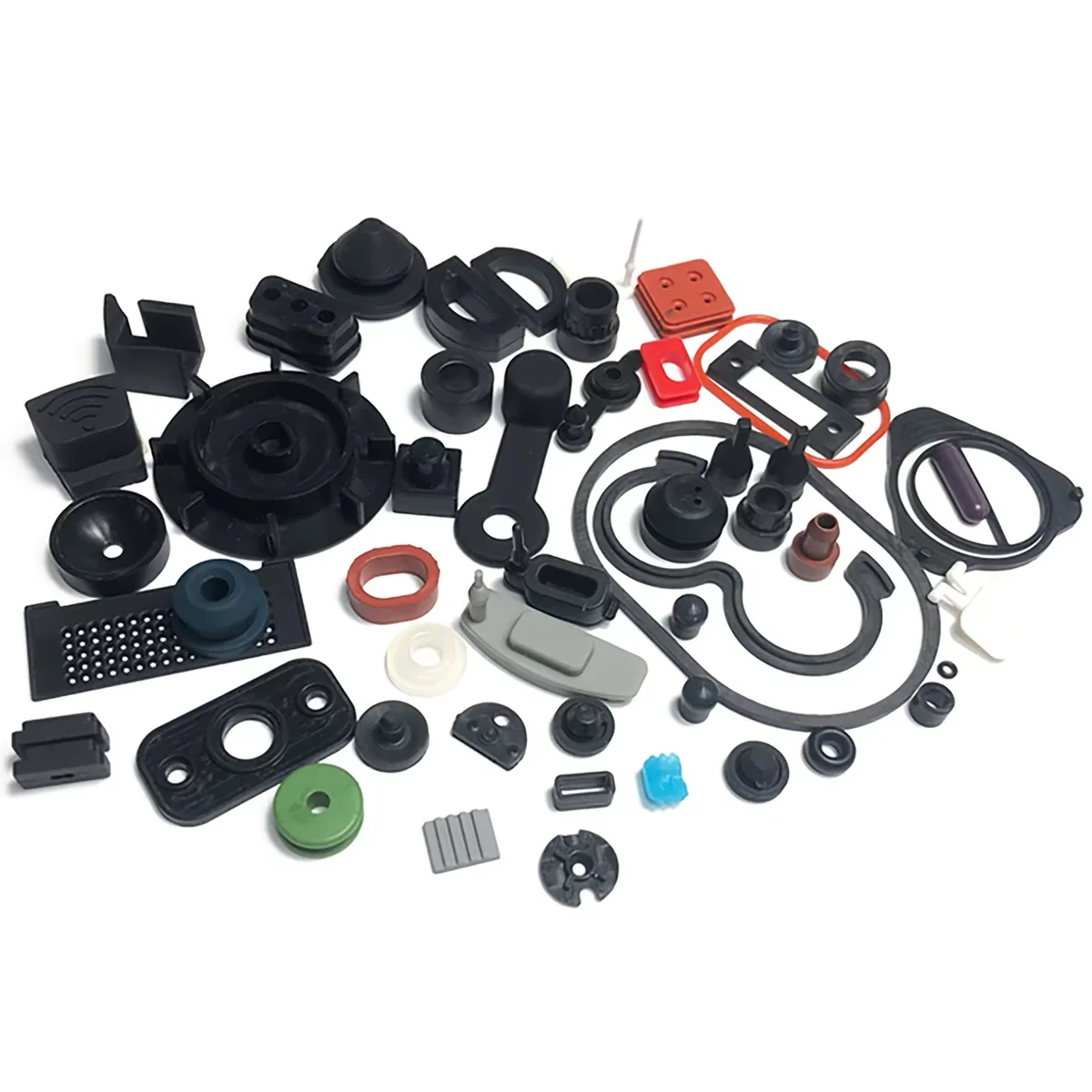

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Specify compression, flange flatness and bolt spacing so the gasket is not over-compressed or extruded.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →CNC Knife Cutting
A flexible route for complex profiles and variable project volumes.
CNC Knife Cutting →Adhesive Backing
PSA and liner constructions selected for the mating surface and assembly method.
Adhesive Backing →Custom Gasket Prototyping
Sample parts for fit, material and assembly validation before production.
Custom Gasket Prototyping →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Geometry and thickness
Provide sufficient sealing land and use compression stops when clamp load can vary widely.
Assembly performance
Target controlled gasket compression; exact percentage depends on compound hardness, joint tolerance and ingress target.
Production route
Specify compression, flange flatness and bolt spacing so the gasket is not over-compressed or extruded.
Applications / Where It Fits
Custom solid-silicone gaskets with precise apertures, bolt patterns and thicknesses for resilient environmental sealing. The final specification is established around the drawing and operating requirements.
When This Part May Not Be the Best Choice
Petroleum-fuel exposure, abrasive dynamic seals, or high-pressure hydraulic service where a reinforced or molded seal is needed.
Alternative parts to consider
Foam GasketsPROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Manufacturing process | Flatbed die cutting, waterjet cutting, laser cutting and gasket assembly |
| Adhesive options | None, acrylic PSA, high-temperature silicone PSA and selective adhesive zones. |
| Surface options | Smooth, fabric-impression, talc-free, coloured and laminated finishes. |
| Custom options | Outline, holes, thickness, durometer, colour, PSA, tabs, protective films and kitted sets. |
| Standards | FDA and LFGB food-contact grades; UL 94 flame ratings and RoHS/REACH documentation by compound. |
Drawing Requirements
Recommended drawing formats
Please include
- sealing land
- bolt pattern
- flange condition
- target compression and material hardness
For a precise custom die-cut silicone gaskets quotation, provide sealing land, bolt pattern, flange condition, target compression and material hardness.
Frequently Asked Questions
Can silicone gaskets be used outdoors?
Yes. Silicone has strong resistance to UV, ozone and weathering when the compound suits the application.
What hardness should I select?
Softer grades seal uneven flanges at lower clamp force; firmer grades better resist extrusion and permanent deformation.
Can a silicone gasket carry adhesive for assembly?
Yes. A pressure-sensitive adhesive can be applied for placement retention before the joint is clamped.
Are food-grade silicone options available?
Food-contact grades can be selected when the application and required compliance are identified.
What should a drawing include for custom die-cut silicone gaskets?
Include sealing land, bolt pattern, flange condition, target compression and material hardness.
Can custom die-cut silicone gaskets be supplied for production assembly?
Yes. Specify compression, flange flatness and bolt spacing so the gasket is not over-compressed or extruded. Delivery format, liner configuration and packaging are specified for the assembly workflow.
How is the right custom die-cut silicone gaskets construction selected?
Select solid silicone for durable compression sealing and silicone sponge for low-clamp-force gap filling. The drawing and operating conditions establish the final construction.
