Material selection
Choose virgin PTFE for purity and chemical resistance; select glass-, carbon- or mineral-filled PTFE when reduced creep or wear is needed.
DRAWING-BASED CUSTOM PARTS

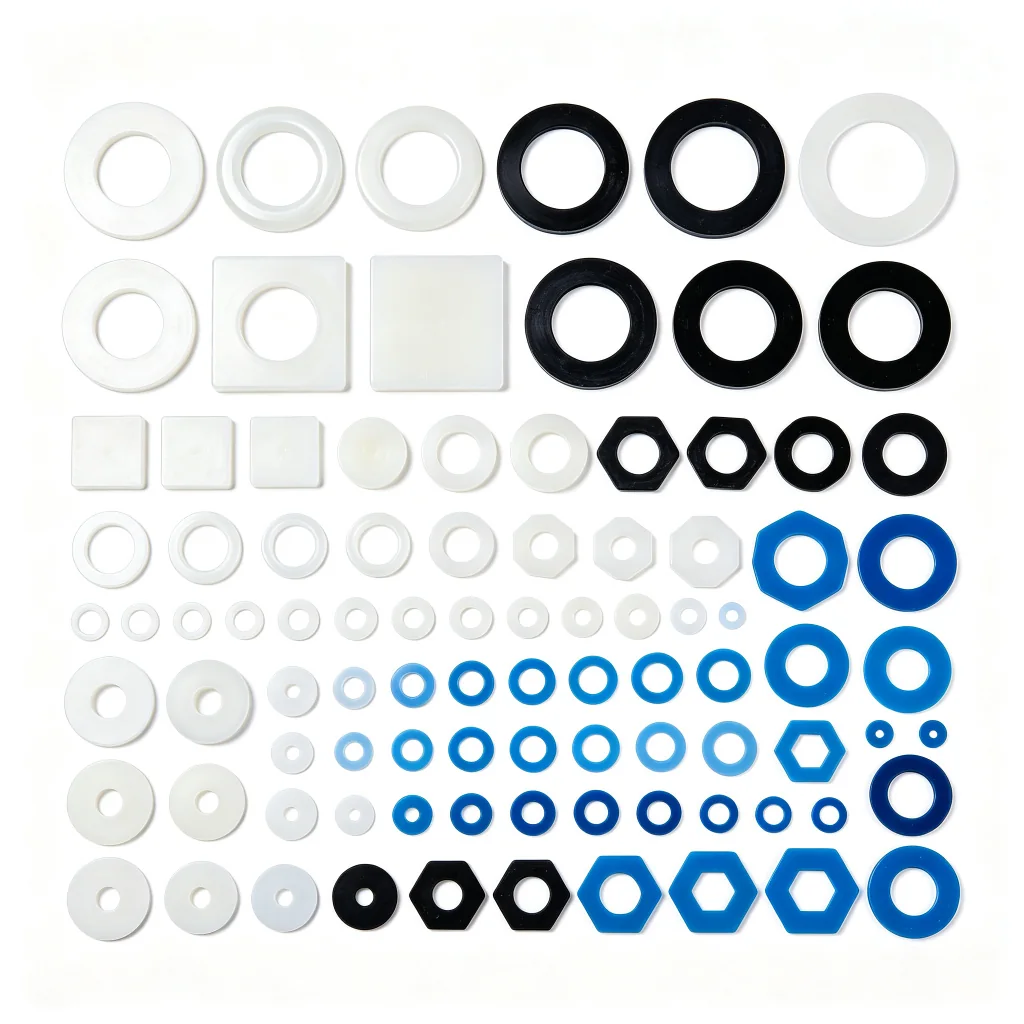

Custom Virgin PTFE Washers
Low-friction virgin PTFE washers for chemical, thermal and electrical environments beyond the range of ordinary elastomers.
Custom-cut or machined virgin PTFE washers for chemical resistance, low friction and stable performance across a very broad temperature range.
Engineered Custom Virgin PTFE Washers
Virgin PTFE washers isolate hardware and distribute clamp load where aggressive chemicals, elevated temperature or low friction would quickly degrade standard plastics or rubber. They can be die cut from thin sheet or machined when thicker sections and tight geometry are required.
Material approach
PTFE has exceptional chemical resistance, very low friction and a broad service temperature range.
Key features
- Virgin fluoropolymer purity
- chemical resistance
- low coefficient of friction
- wide temperature range
- custom ID
- OD and shape.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Material | 100% virgin PTFE |
|---|---|
| Thickness range | 0.1-25 mm |
| Typical thickness | 0.5-3 mm |
| Size range | Inner diameter 1-300 mm; custom profiles to 1,200 x 900 mm sheet size |
| Temperature range | -180 to 260 C |
| Hardness range | Shore D 50-60 typical |
| Tolerance | Die-cut profile typically +/-0.15 mm; machined dimensions by drawing |
| Standards | FDA-compliant grades, USP Class VI options and RoHS/REACH documentation by resin grade. |
MATERIAL SELECTION
Virgin PTFE Washers Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Primary strength | Selection focus | Best fit |
|---|---|---|---|
| Virgin PTFE | PTFE has exceptional chemical resistance, very low friction and a broad service temperature range. | Choose virgin PTFE for purity and chemical resistance; select glass-, carbon- or mineral-filled PTFE when reduced creep or wear is needed. | Chemical process equipment, laboratory fixtures, corrosive fluid systems, electrical isolation, heat-resistant spacers and low-friction bearing interfaces. |
| filled PTFE | Non-stick surface, electrical insulation, low moisture absorption, thermal stability and cold-flow behavior under load. | Choose virgin PTFE for purity and chemical resistance; select glass-, carbon- or mineral-filled PTFE when reduced creep or wear is needed. | Chemical process equipment, laboratory fixtures, corrosive fluid systems, electrical isolation, heat-resistant spacers and low-friction bearing interfaces. |
| expanded PTFE | Non-stick surface, electrical insulation, low moisture absorption, thermal stability and cold-flow behavior under load. | Choose virgin PTFE for purity and chemical resistance; select glass-, carbon- or mineral-filled PTFE when reduced creep or wear is needed. | Chemical process equipment, laboratory fixtures, corrosive fluid systems, electrical isolation, heat-resistant spacers and low-friction bearing interfaces. |
PRODUCT EXAMPLES

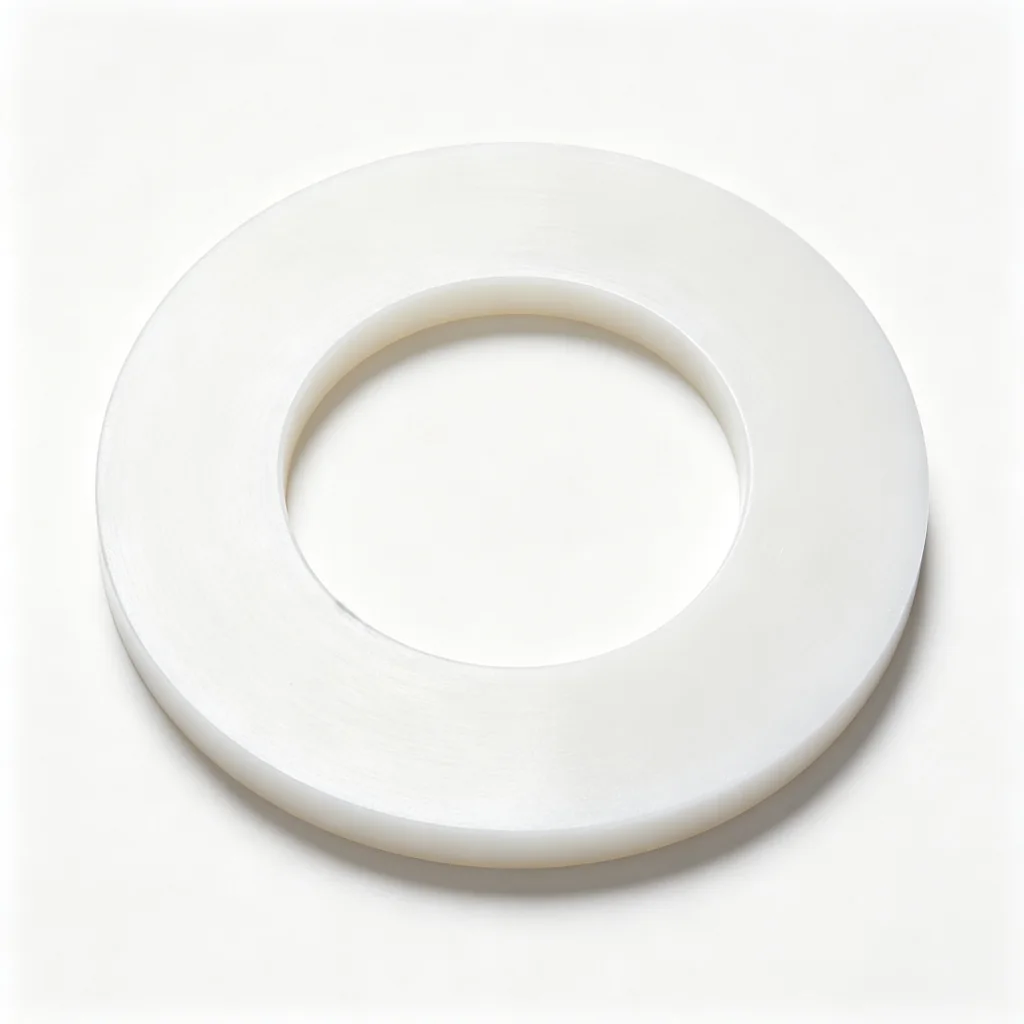

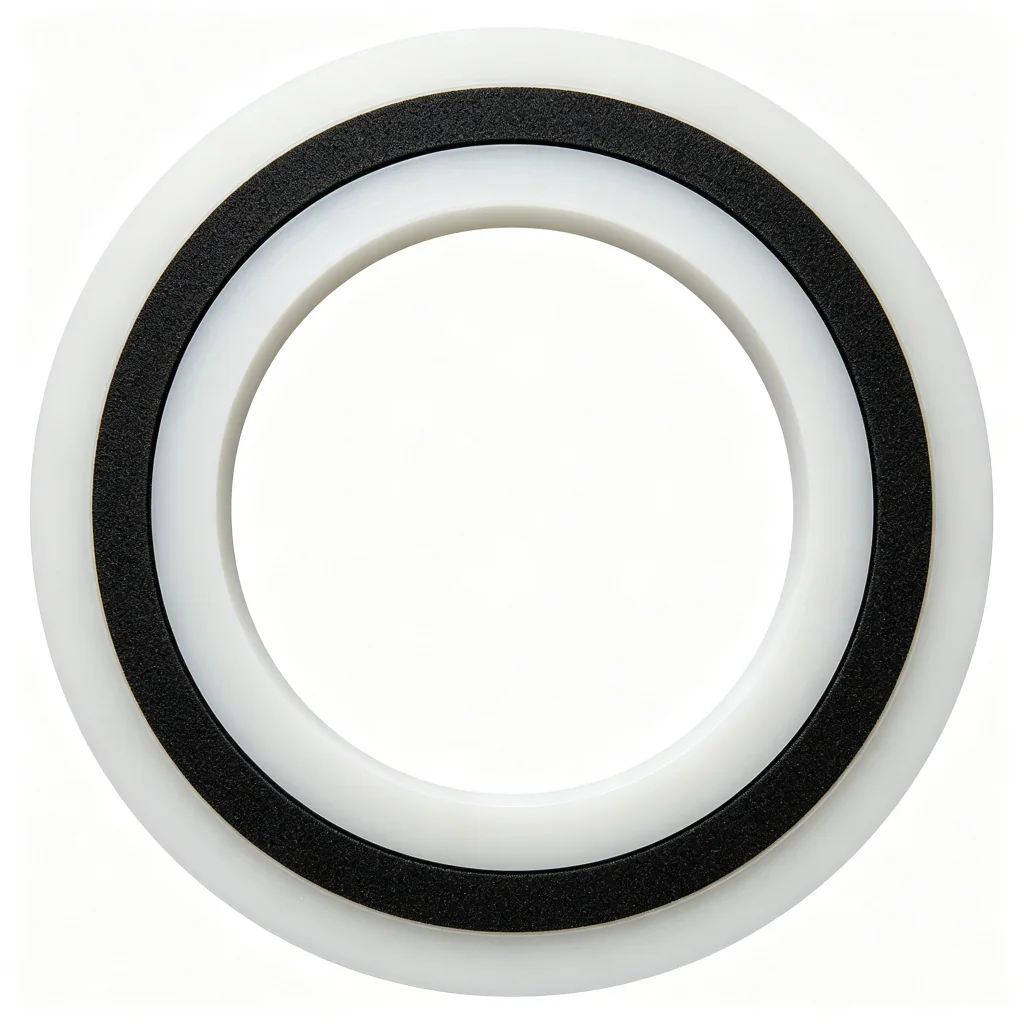

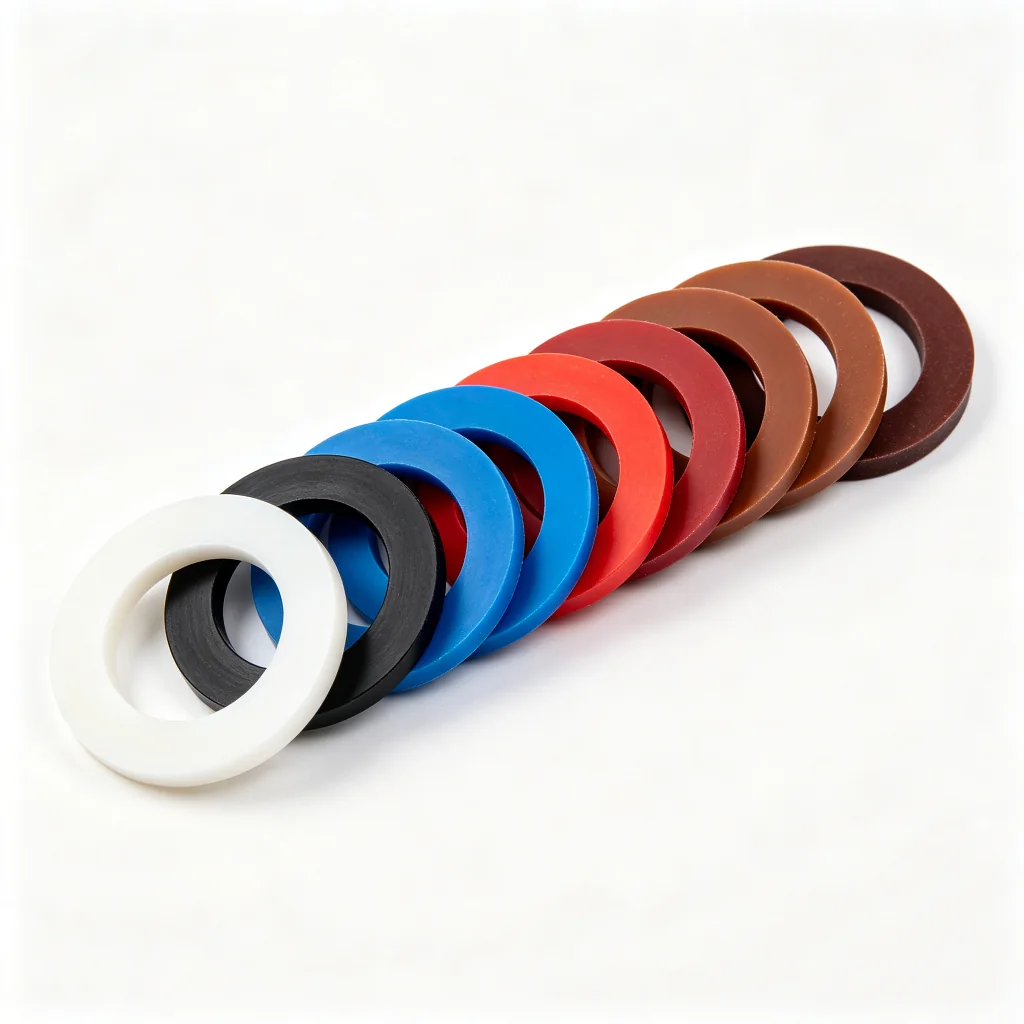

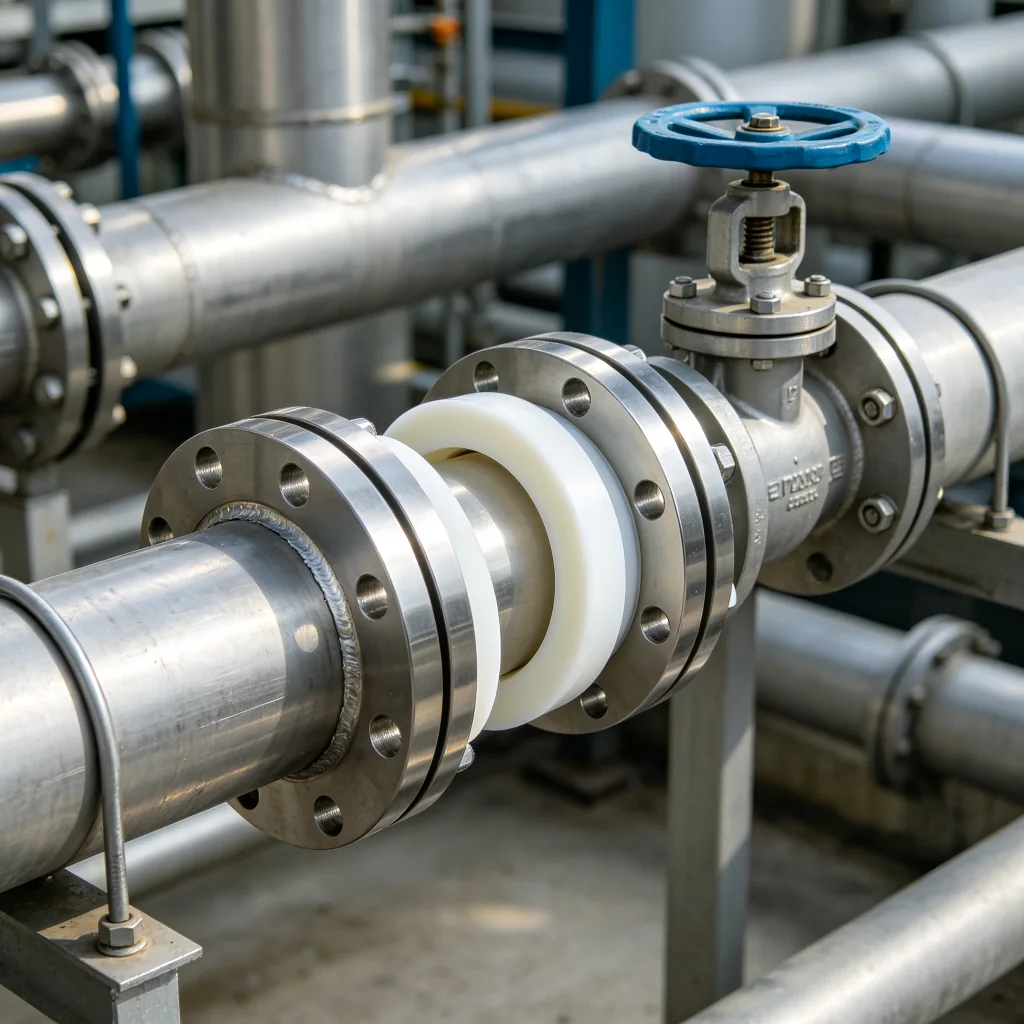

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Account for PTFE creep under sustained clamp load; use suitable flange design, backing support or retorque procedures where required.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →CNC Knife Cutting
A flexible route for complex profiles and variable project volumes.
CNC Knife Cutting →Custom Gasket Prototyping
Sample parts for fit, material and assembly validation before production.
Custom Gasket Prototyping →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Geometry and thickness
Use broad bearing areas and controlled torque; avoid sharp loaded edges that can encourage cold flow.
Assembly performance
PTFE is highly chemical resistant but mechanically softer than metal. Design clamp loads and supports for long-term dimensional stability.
Production route
Account for PTFE creep under sustained clamp load; use suitable flange design, backing support or retorque procedures where required.
Applications / Where It Fits
Custom-cut or machined virgin PTFE washers for chemical resistance, low friction and stable performance across a very broad temperature range. The final specification is established around the drawing and operating requirements.
When This Part May Not Be the Best Choice
Applications needing high stiffness under sustained load without creep allowance, abrasive wear at high surface pressure, or economical general-purpose washers.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Manufacturing process | Die cutting, skiving, CNC machining, waterjet cutting and stamping |
| Adhesive options | None typical; surface treatment and specialty bonding methods available for assembly retention. |
| Surface options | Natural white skived, etched bonding surface, filled grades and machined finish. |
| Custom options | ID, OD, thickness, slots, tabs, filled grade, etched surface, machining and kitted sets. |
| Standards | FDA-compliant grades, USP Class VI options and RoHS/REACH documentation by resin grade. |
Drawing Requirements
Recommended drawing formats
Please include
- chemical media
- temperature
- fastener load
- bearing area
- creep allowance and required geometry
For a precise custom virgin ptfe washers quotation, provide chemical media, temperature, fastener load, bearing area, creep allowance and required geometry.
Frequently Asked Questions
What does virgin PTFE mean?
It means the washer is made from unfilled, primary PTFE resin rather than recycled or compounded material.
Can PTFE washers handle acids and solvents?
PTFE resists a very wide range of chemicals; confirm compatibility for the exact chemical, concentration and temperature.
Will a PTFE washer creep under bolt load?
PTFE can cold flow under sustained pressure, so joint design, bearing area and torque management are important.

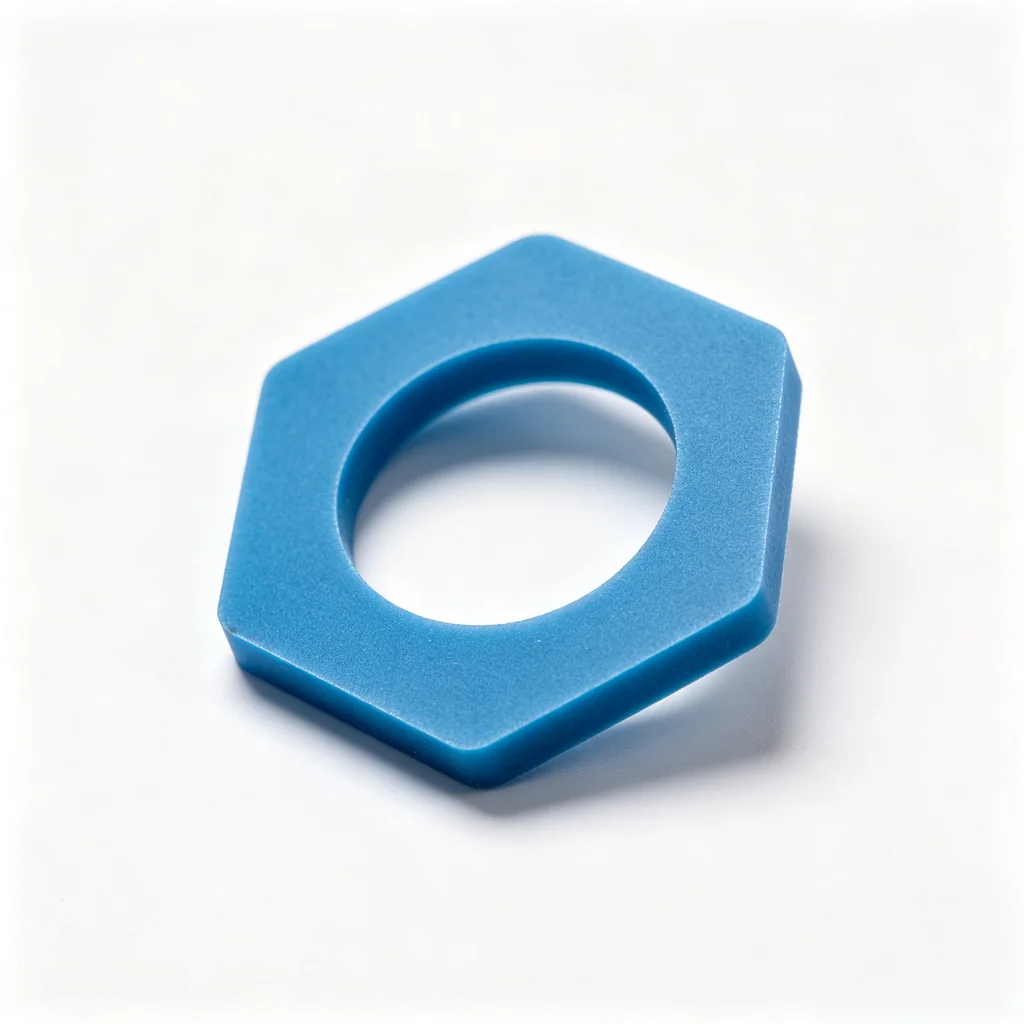

Can PTFE washers be made in non-round shapes?
Yes. Die cutting, waterjet cutting and machining can create slots, tabs and custom profiles.
What should a drawing include for custom virgin ptfe washers?
Include chemical media, temperature, fastener load, bearing area, creep allowance and required geometry.
Can custom virgin ptfe washers be supplied for production assembly?
Yes. Account for PTFE creep under sustained clamp load; use suitable flange design, backing support or retorque procedures where required. Delivery format, liner configuration and packaging are specified for the assembly workflow.
How is the right custom virgin ptfe washers construction selected?
Choose virgin PTFE for purity and chemical resistance; select glass-, carbon- or mineral-filled PTFE when reduced creep or wear is needed. The drawing and operating conditions establish the final construction.
