Material selection
Use silicone for heat and broad temperature range, EPDM for weathering, NBR for oil exposure and natural rubber for economical grip.
DRAWING-BASED CUSTOM PARTS

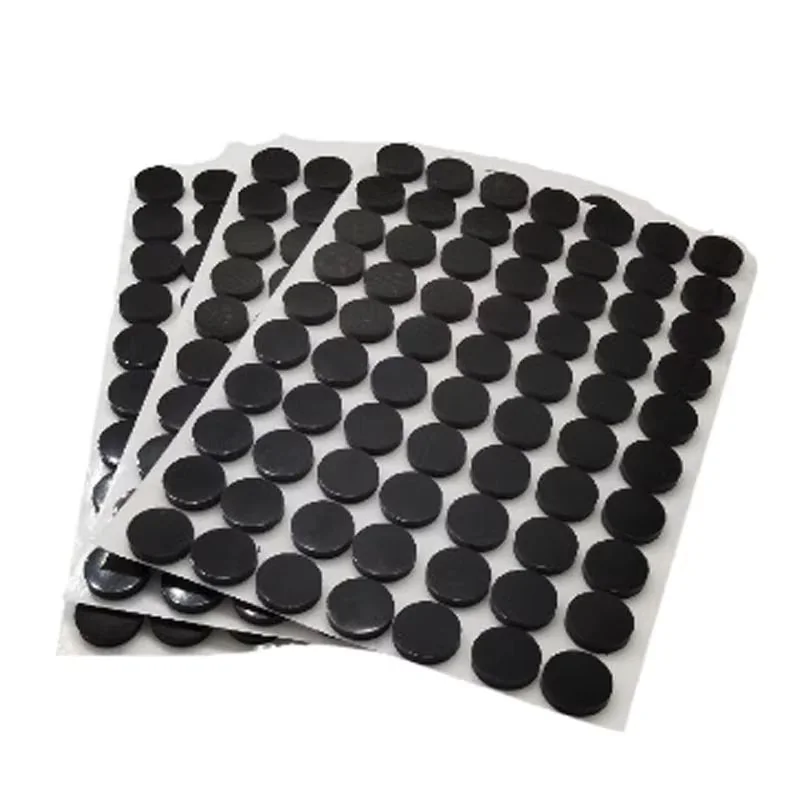

Custom Self-Adhesive Rubber Bumper Pads
Purpose-built rubber feet and bumpers that protect surfaces, quiet contact points and keep equipment from sliding.
Die-cut or molded adhesive-backed rubber bumper pads engineered around grip, impact softness and environmental exposure.
Engineered Custom Self-Adhesive Rubber Bumper Pads
Rubber bumper pads are applied where a hard component needs a compliant landing surface. The part geometry, rubber grade and adhesive are selected together so the pad stays in place while absorbing knock, reducing noise or improving grip.
Material approach
Elastomers provide higher friction and more durable repeated-impact behavior than common foam pads.
Key features
- High-grip surface
- impact damping
- custom durometer
- optional domed profile
- adhesive or mechanical mounting.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Material | Silicone, EPDM, NBR or natural rubber |
|---|---|
| Thickness range | 0.5-20 mm |
| Typical thickness | 1.5-4 mm |
| Size range | 3 mm dots to 500 x 500 mm pads |
| Temperature range | -40 to 200 C; material-dependent |
| Hardness range | Shore A 20-80 |
| Tolerance | Typically +/-0.20 mm die-cut profile; molded features by drawing |
| Standards | RoHS and REACH material declarations; UL-recognized grades available where applicable. |
MATERIAL SELECTION
Self-Adhesive Rubber Bumper Pads Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Primary strength | Selection focus | Best fit |
|---|---|---|---|
| Silicone rubber | Elastomers provide higher friction and more durable repeated-impact behavior than common foam pads. | Use silicone for heat and broad temperature range, EPDM for weathering, NBR for oil exposure and natural rubber for economical grip. | Cabinet feet, appliance stops, glass protection, drawer buffers, tool rests, anti-slip contact pads and vibration contact points. |
| EPDM | Friction, rebound, compression set, abrasion resistance and temperature tolerance vary by selected elastomer. | Use silicone for heat and broad temperature range, EPDM for weathering, NBR for oil exposure and natural rubber for economical grip. | Cabinet feet, appliance stops, glass protection, drawer buffers, tool rests, anti-slip contact pads and vibration contact points. |
| NBR | Friction, rebound, compression set, abrasion resistance and temperature tolerance vary by selected elastomer. | Use silicone for heat and broad temperature range, EPDM for weathering, NBR for oil exposure and natural rubber for economical grip. | Cabinet feet, appliance stops, glass protection, drawer buffers, tool rests, anti-slip contact pads and vibration contact points. |
PRODUCT EXAMPLES

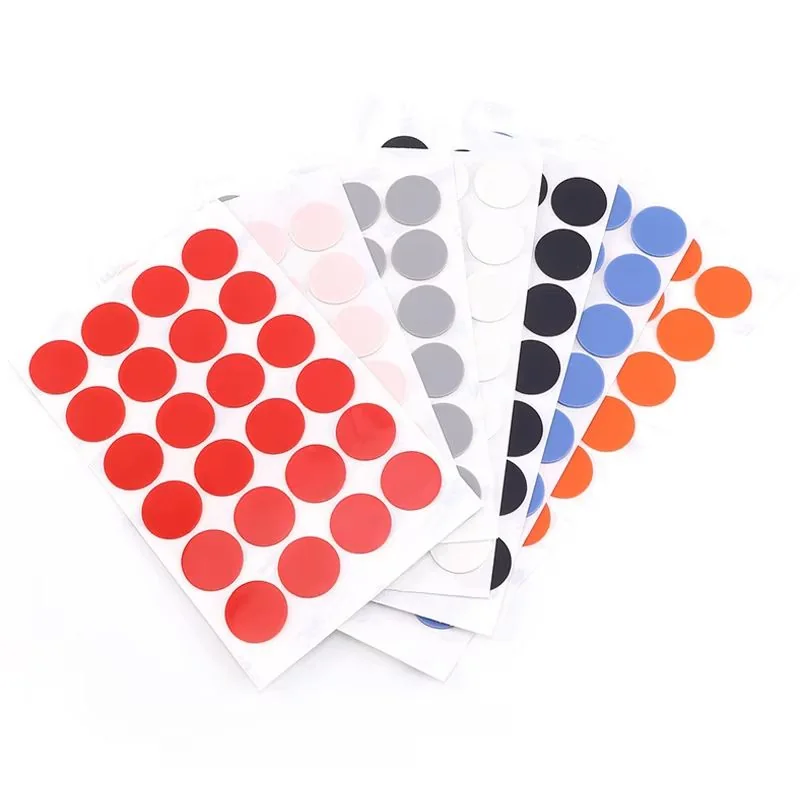

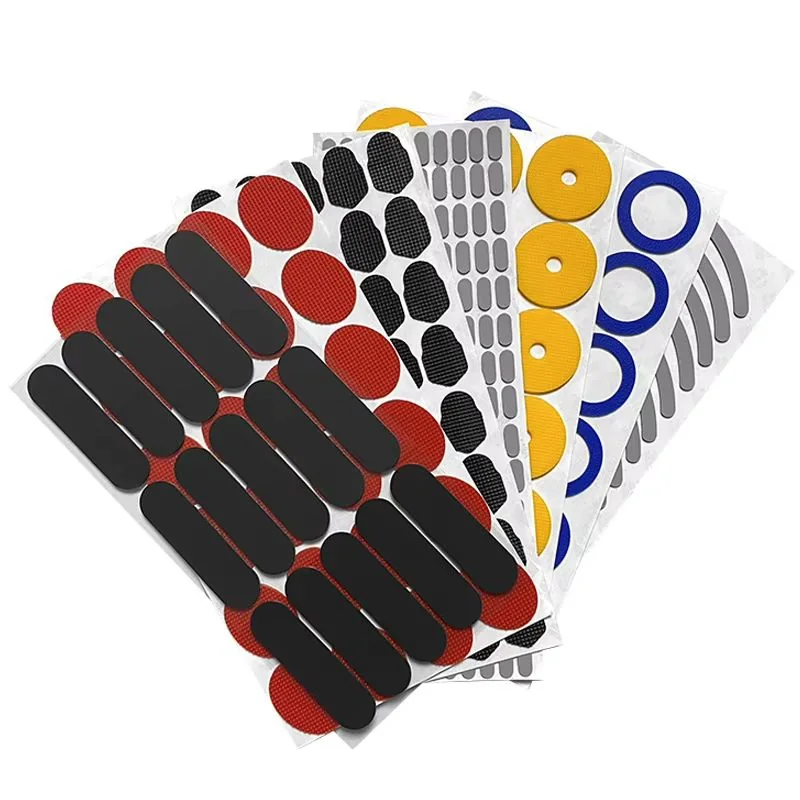

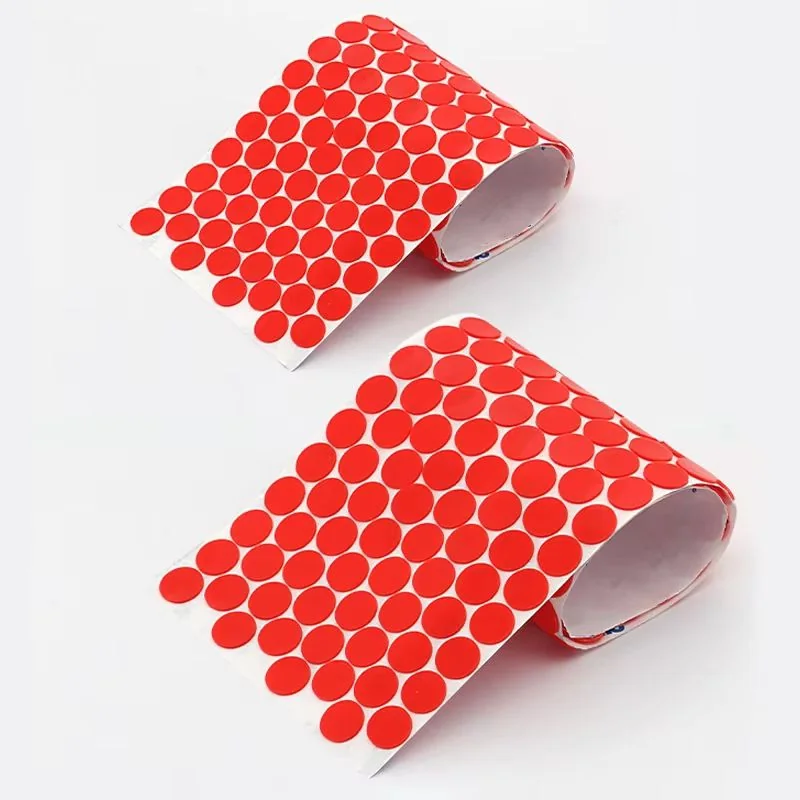

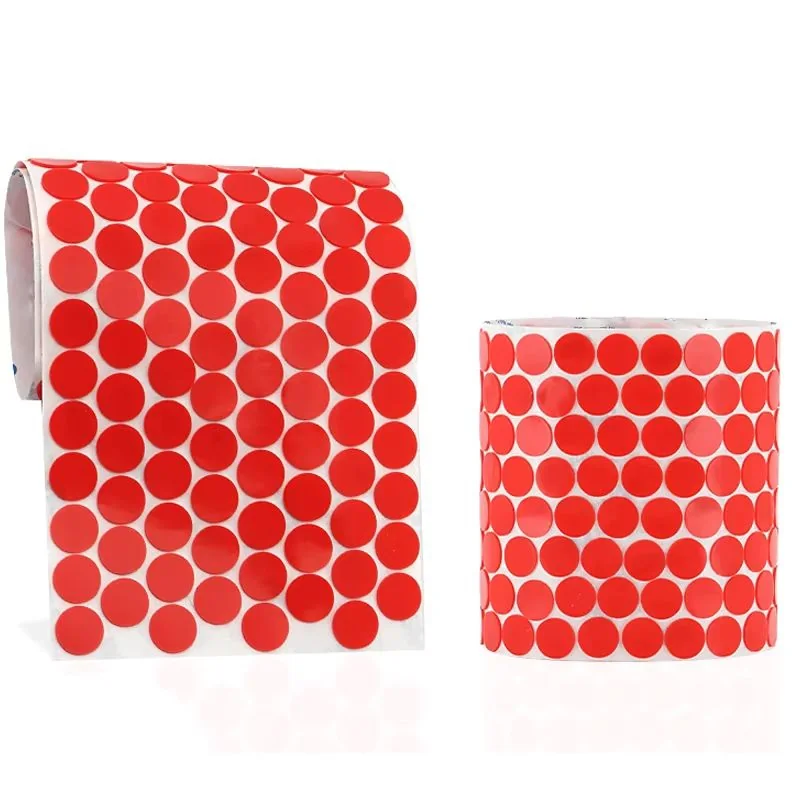

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Match the adhesive to the substrate and account for pad shear load, not just vertical impact.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →Adhesive Backing
PSA and liner constructions selected for the mating surface and assembly method.
Adhesive Backing →Custom Gasket Prototyping
Sample parts for fit, material and assembly validation before production.
Custom Gasket Prototyping →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Geometry and thickness
Place multiple pads symmetrically to distribute load and keep edge stress away from thin housings.
Assembly performance
Select durometer by contact force: softer grades cushion better, while harder grades resist creep under sustained load.
Production route
Match the adhesive to the substrate and account for pad shear load, not just vertical impact.
Applications / Where It Fits
Die-cut or molded adhesive-backed rubber bumper pads engineered around grip, impact softness and environmental exposure. The final specification is established around the drawing and operating requirements.
When This Part May Not Be the Best Choice
High-load structural mounts, chemically aggressive service without a compatible rubber grade, or joints requiring a fluid-tight gasket.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Manufacturing process | Die cutting, waterjet cutting, compression molding and adhesive lamination |
| Adhesive options | Acrylic PSA, high-bond acrylic, rubber PSA and removable mounting adhesive. |
| Surface options | Smooth, matte, textured, ribbed, domed or embossed anti-slip surfaces. |
| Custom options | Diameter, thickness, shape, durometer, colour, surface texture, adhesive and liner. |
| Standards | RoHS and REACH material declarations; UL-recognized grades available where applicable. |
Drawing Requirements
Recommended drawing formats
Please include
- contact load
- exposed surface
- pad footprint and target substrate
For a precise custom self-adhesive rubber bumper pads quotation, provide contact load, exposed surface, pad footprint and target substrate.
Frequently Asked Questions
Can the bumper pads be clear or coloured?
Yes. Silicone can be clear or translucent, and many rubber grades can be matched to standard or custom colours.
How do I prevent a rubber foot from creeping under load?
Increase contact area, choose a higher durometer or use a higher-shear adhesive after confirming the substrate surface.
Are domed pads better than flat pads?
Domed pads concentrate cushioning at first contact; flat pads spread the load over a larger area.
Can you make pads with a center hole?
Yes. Die cutting or molding can add mounting holes, countersinks and alignment features.
What should a drawing include for custom self-adhesive rubber bumper pads?
Include contact load, exposed surface, pad footprint and target substrate.
Can custom self-adhesive rubber bumper pads be supplied for production assembly?
Yes. Match the adhesive to the substrate and account for pad shear load, not just vertical impact. Delivery format, liner configuration and packaging are specified for the assembly workflow.
How is the right custom self-adhesive rubber bumper pads construction selected?
Use silicone for heat and broad temperature range, EPDM for weathering, NBR for oil exposure and natural rubber for economical grip. The drawing and operating conditions establish the final construction.
