Material selection
Choose EVA for light-duty support and clean die-cut edges; select cross-linked PE for firmer spacers or silicone foam for higher heat.
DRAWING-BASED CUSTOM PARTS

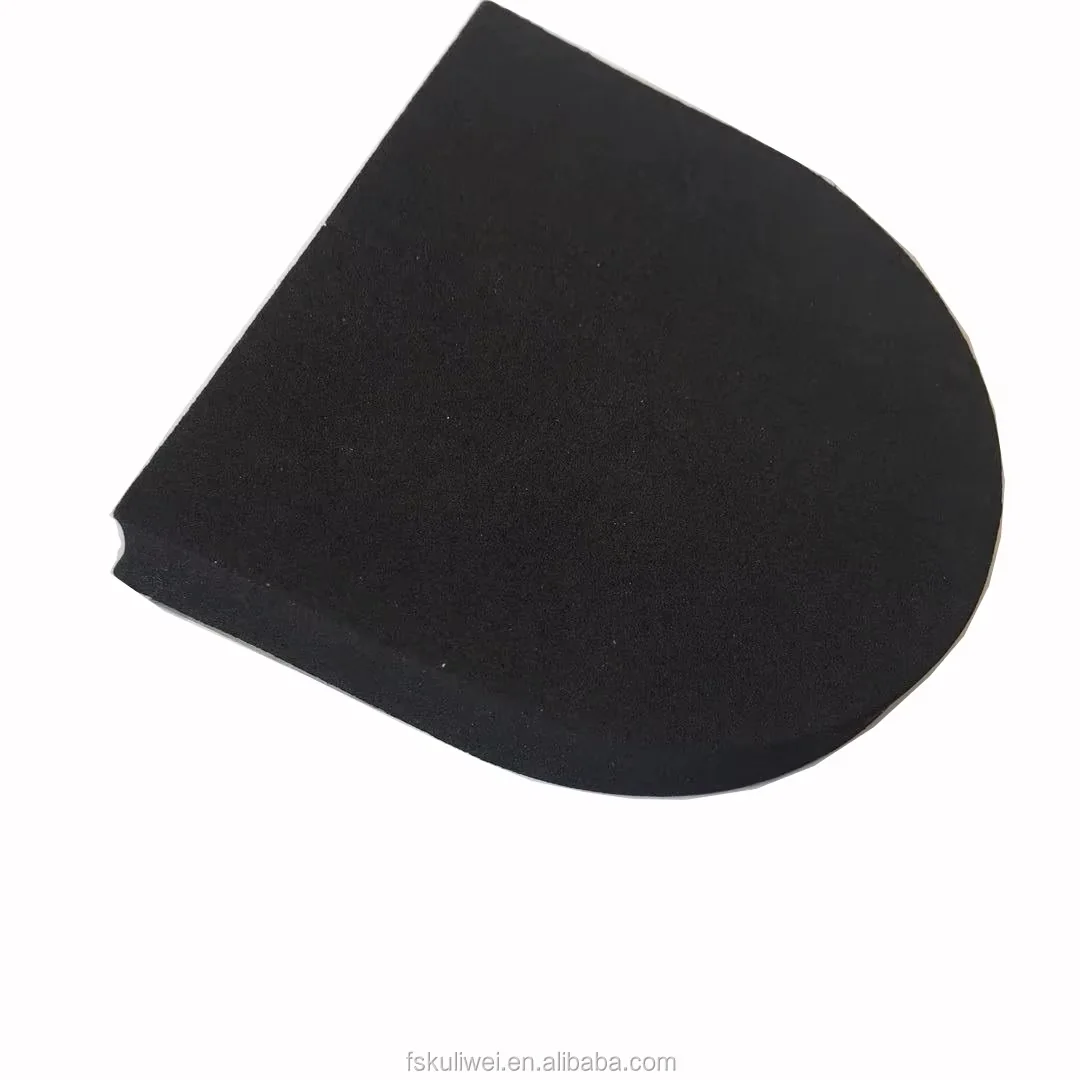

Custom Adhesive-Backed EVA Foam Pads
Lightweight die-cut EVA pads that add spacing, grip and shock isolation without messy liquid adhesives.
Custom EVA foam pads with pressure-sensitive adhesive for equipment spacing, anti-rattle contact and protective cushioning.
Engineered Custom Adhesive-Backed EVA Foam Pads
These closed-cell EVA pads are die cut to the footprint of the contact area, then supplied with a linered adhesive so assembly teams can position them quickly. They balance firm support with resilient cushioning for small appliances, fixtures and transport packaging.
Material approach
EVA combines low water uptake, clean edges and dependable compression recovery at a lower weight than solid rubber.
Key features
- Closed-cell construction
- clean die-cut profiles
- fast peel-and-stick installation
- low moisture absorption
- custom thicknesses and kiss-cut sheets.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Material | Closed-cell EVA foam |
|---|---|
| Thickness range | 0.5-25 mm |
| Typical thickness | 1-5 mm |
| Size range | 5 x 5 mm to 1,000 x 1,000 mm |
| Temperature range | -20 to 80 C |
| Hardness range | Shore 00 35-70 |
| Tolerance | Typically +/-0.25 mm profile; thickness grade dependent |
| Standards | RoHS and REACH material declarations available by selected grade. |
MATERIAL SELECTION
Adhesive-Backed EVA Foam Pads Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Primary strength | Selection focus | Best fit |
|---|---|---|---|
| EVA foam | EVA combines low water uptake, clean edges and dependable compression recovery at a lower weight than solid rubber. | Choose EVA for light-duty support and clean die-cut edges; select cross-linked PE for firmer spacers or silicone foam for higher heat. | Anti-rattle pads, device spacers, protective stops, drawer buffers, lightweight equipment feet and packaging inserts. |
| cross-linked PE foam | Resilient compression, low water absorption, good abrasion resistance and moderate thermal insulation. | Choose EVA for light-duty support and clean die-cut edges; select cross-linked PE for firmer spacers or silicone foam for higher heat. | Anti-rattle pads, device spacers, protective stops, drawer buffers, lightweight equipment feet and packaging inserts. |
| neoprene foam and silicone foam alternatives. | Resilient compression, low water absorption, good abrasion resistance and moderate thermal insulation. | Choose EVA for light-duty support and clean die-cut edges; select cross-linked PE for firmer spacers or silicone foam for higher heat. | Anti-rattle pads, device spacers, protective stops, drawer buffers, lightweight equipment feet and packaging inserts. |
PRODUCT EXAMPLES

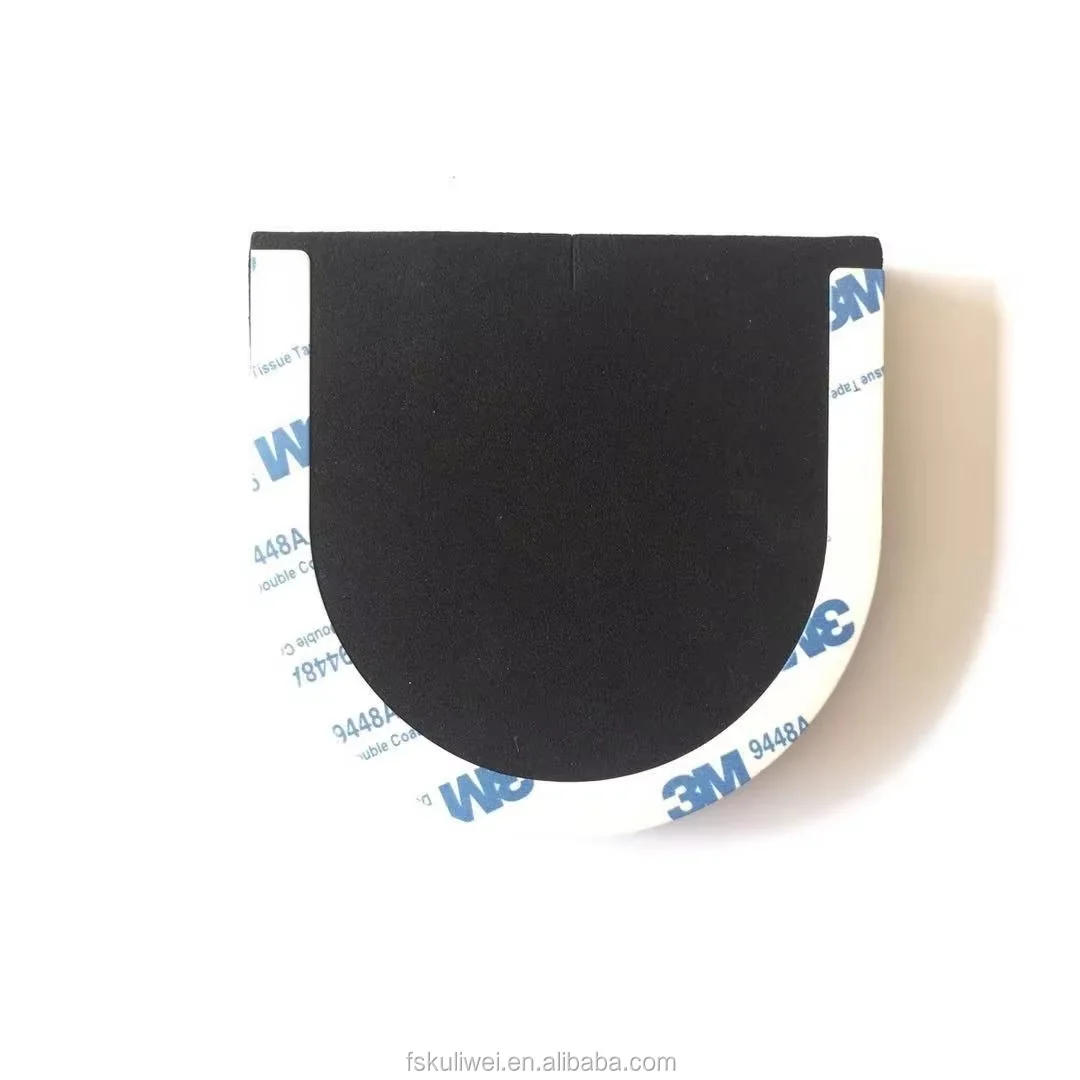

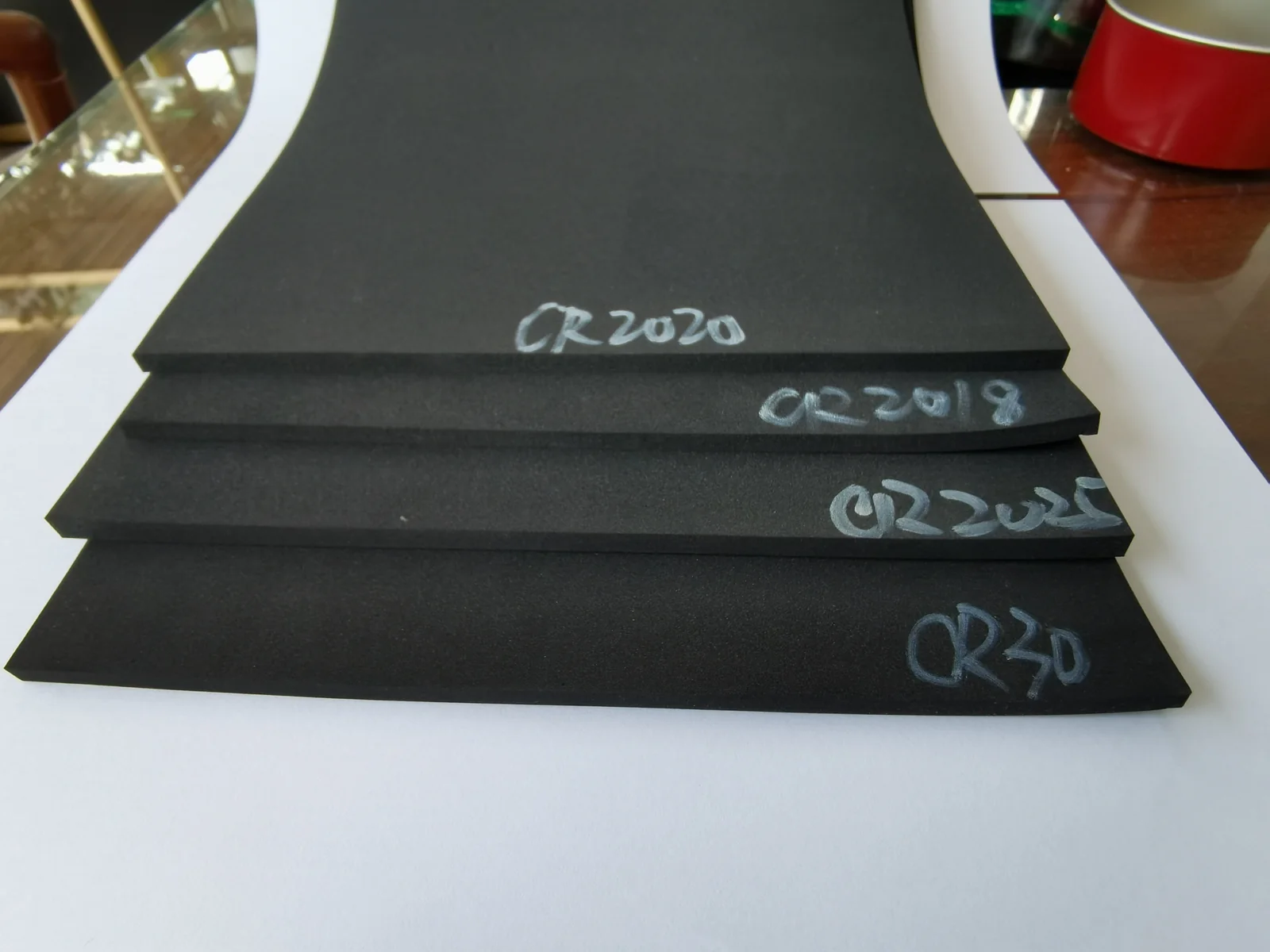

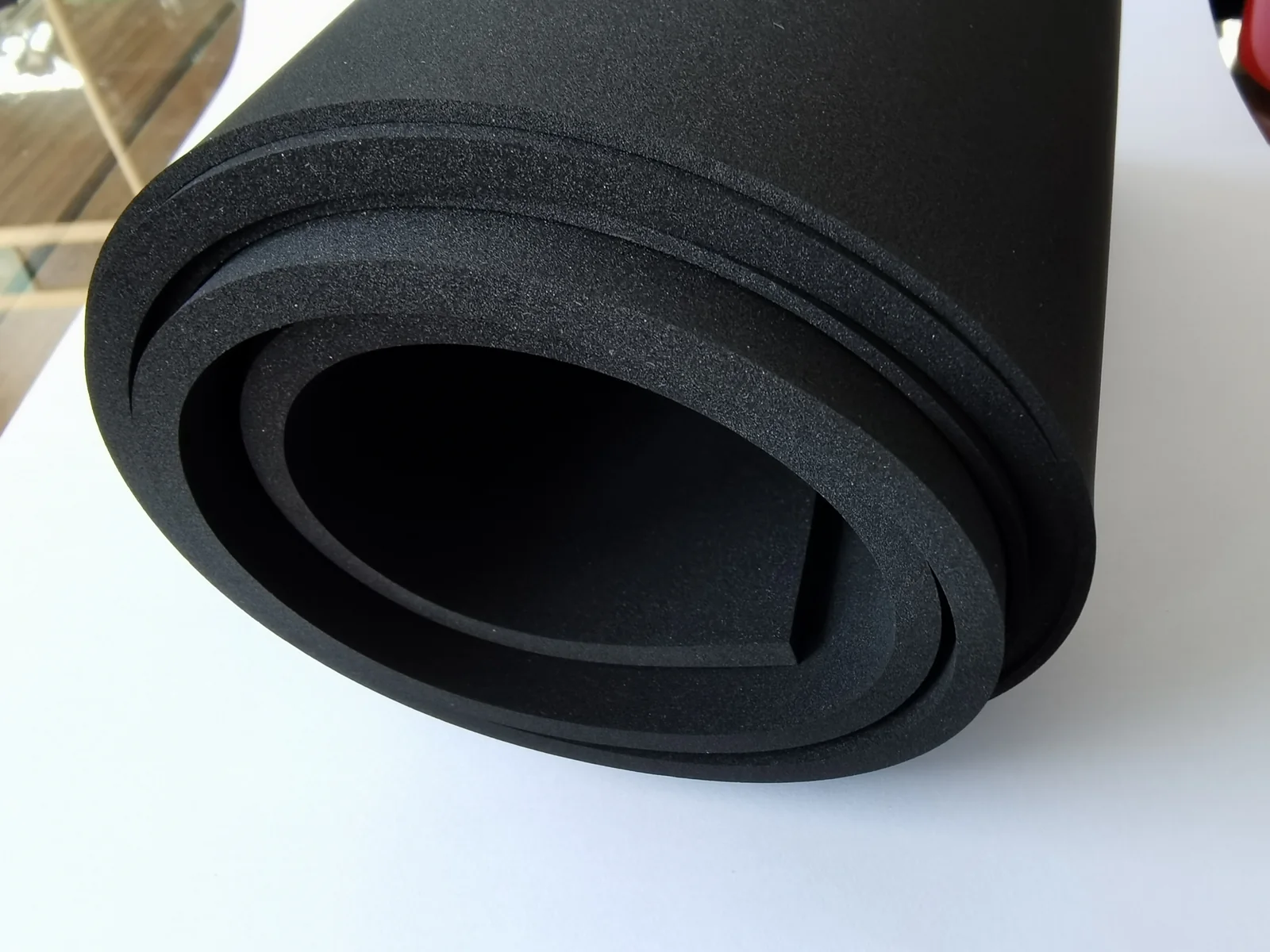

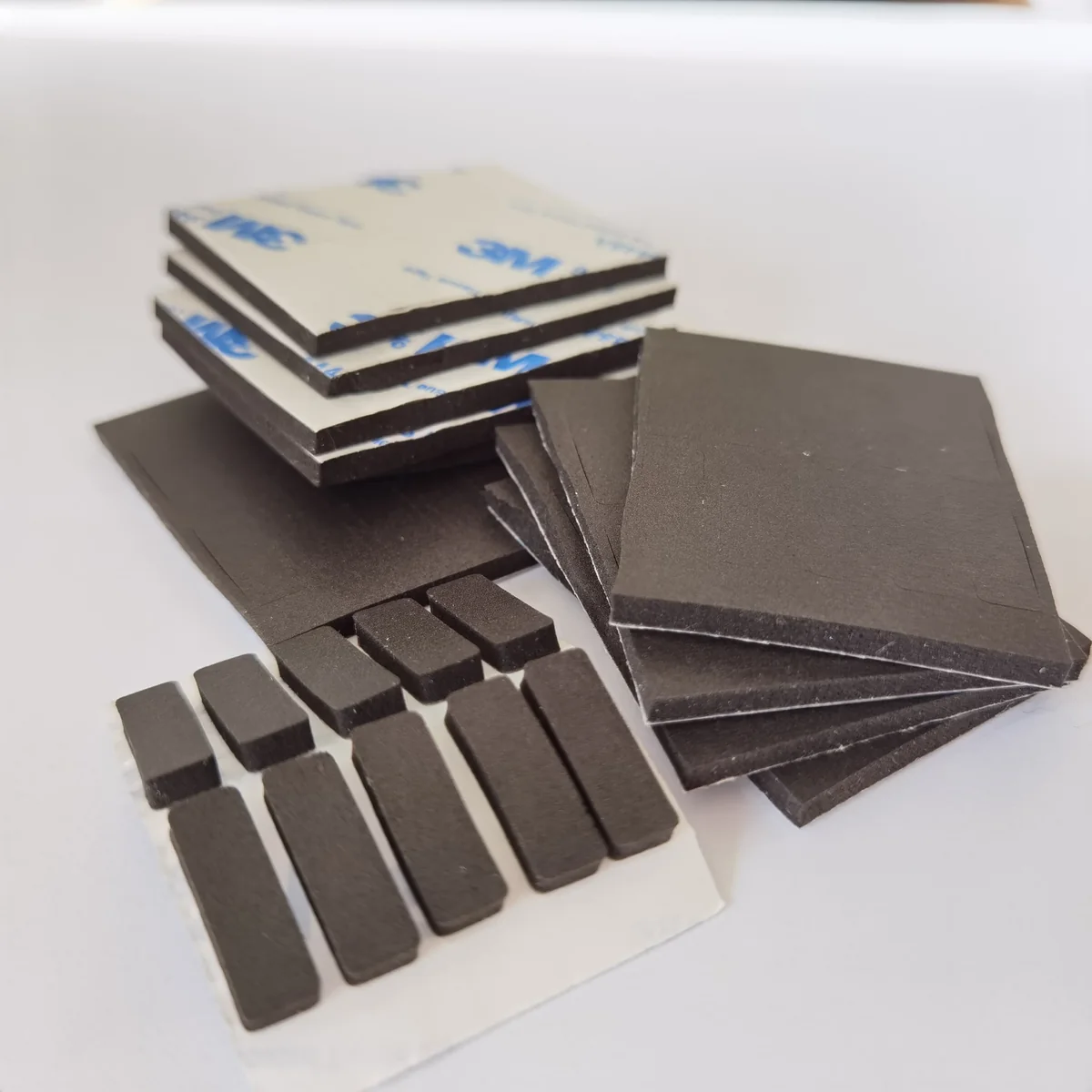

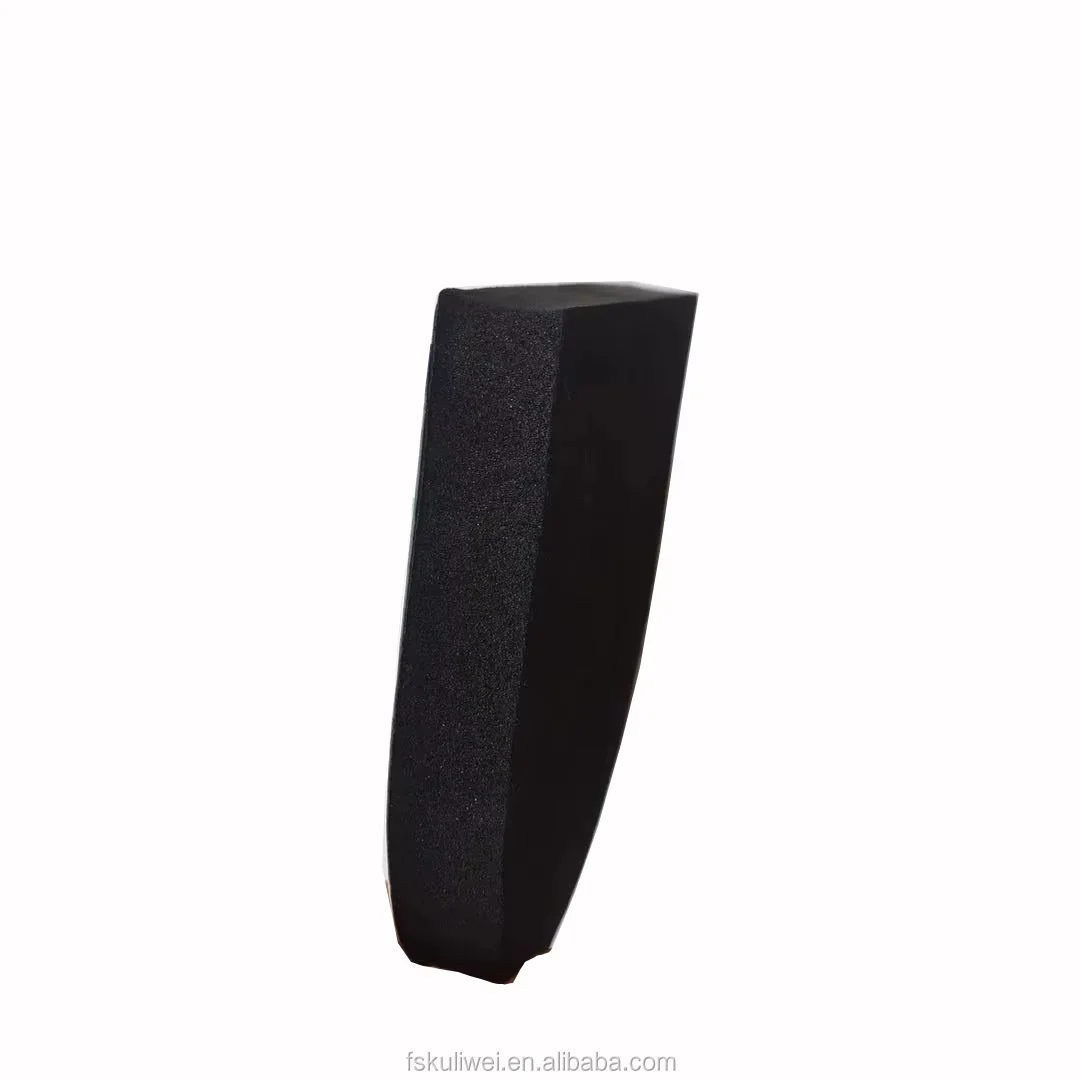

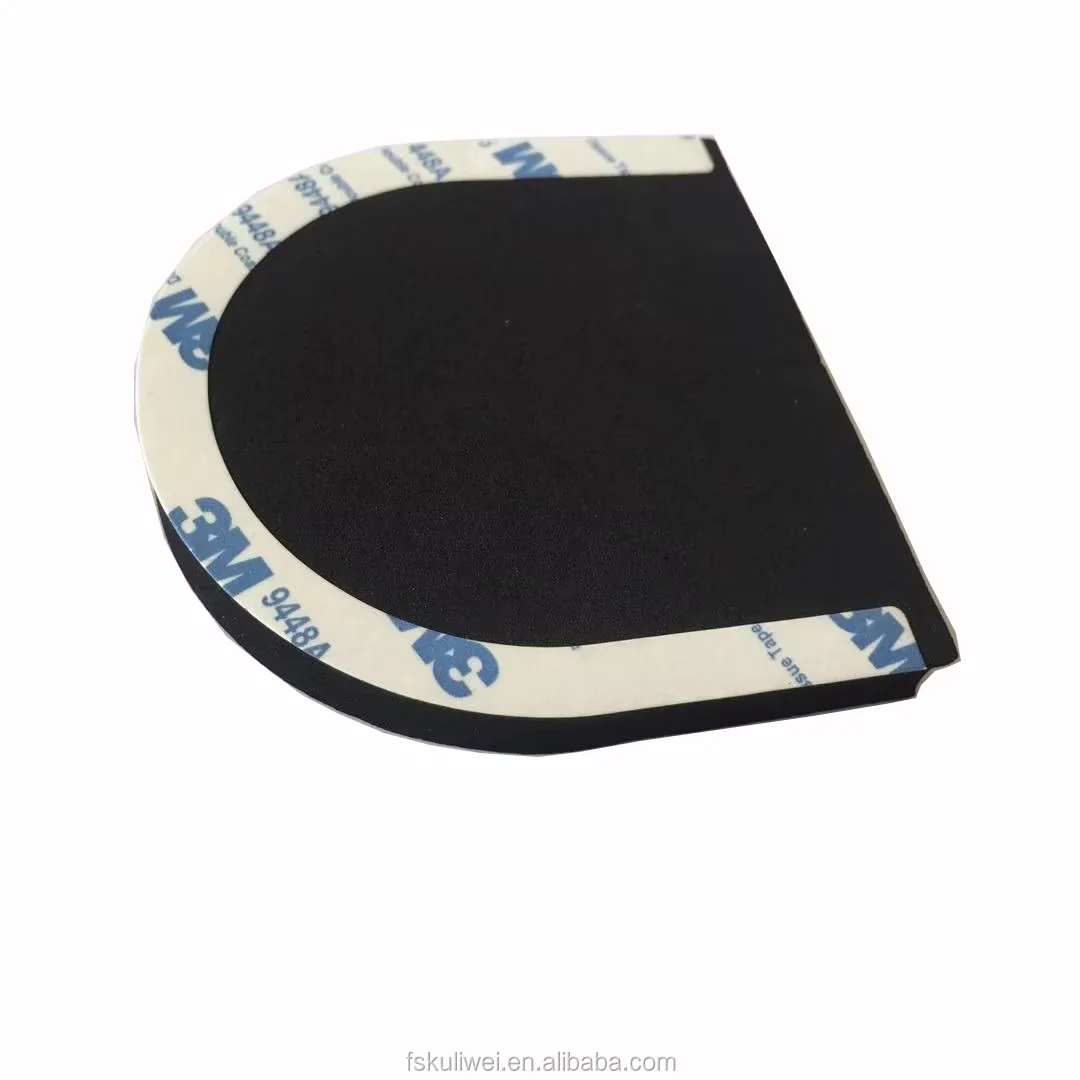

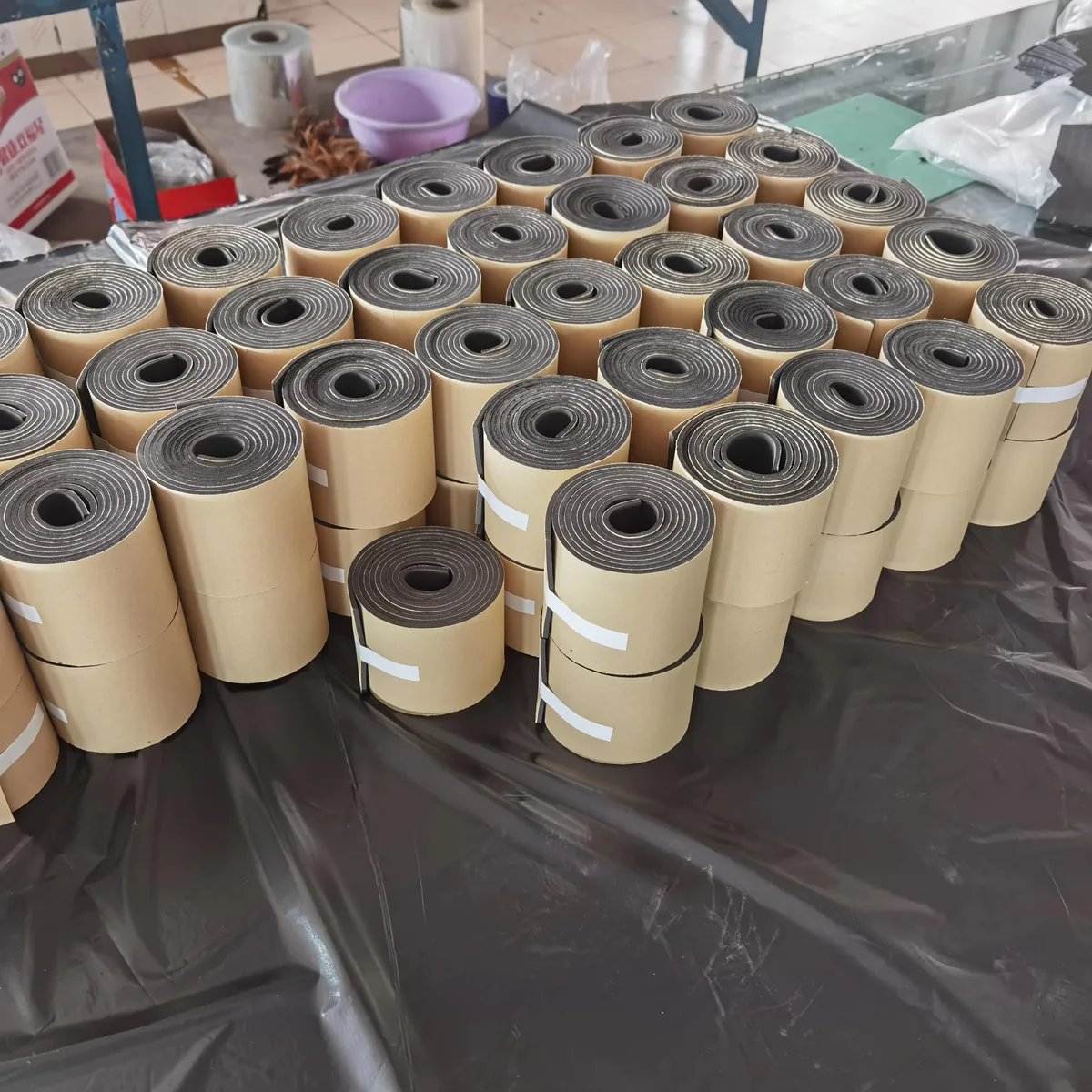

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Specify compression target, liner type and whether parts are supplied as singles, strips or kiss-cut sheets.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →Kiss Cutting
Liner-retained parts and pull-tab layouts for placement workflows.
Kiss Cutting →Adhesive Backing
PSA and liner constructions selected for the mating surface and assembly method.
Adhesive Backing →Industrial Laminating
Layered material constructions developed as a complete assembly.
Industrial Laminating →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Geometry and thickness
Use broad contact pads and avoid sharp corners where repeated compression could initiate tearing.
Assembly performance
Allow for adhesive wet-out time and use a thicker grade when a gap must be bridged rather than merely cushioned.
Production route
Specify compression target, liner type and whether parts are supplied as singles, strips or kiss-cut sheets.
Applications / Where It Fits
Custom EVA foam pads with pressure-sensitive adhesive for equipment spacing, anti-rattle contact and protective cushioning. The final specification is established around the drawing and operating requirements.
When This Part May Not Be the Best Choice
Continuous high-temperature duty, aggressive solvents, exposed UV service without a suitable grade, or precision structural shims.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Manufacturing process | Flatbed die cutting, rotary die cutting and adhesive lamination |
| Adhesive options | Acrylic PSA, rubber PSA, removable PSA and high-tack acrylic PSA. |
| Surface options | Smooth skin, embossed texture, film laminate and custom colours. |
| Custom options | Shape, thickness, density, colour, adhesive pattern, pull tab, liner and packaging. |
| Standards | RoHS and REACH material declarations available by selected grade. |
Drawing Requirements
Recommended drawing formats
Please include
- pad footprint
- compressed gap
- target substrate and required adhesive layout
For a precise custom adhesive-backed eva foam pads quotation, provide pad footprint, compressed gap, target substrate and required adhesive layout.
Frequently Asked Questions
Can EVA foam pads be supplied in small custom shapes?
Yes. Die cutting can produce small circles, rings, strips, windows and irregular outlines from the same sheet.
Will the adhesive stick to powder-coated metal?
A high-tack acrylic PSA is usually suitable after the surface is clean and dry; a production trial confirms the best choice.
Are EVA pads waterproof?
Closed-cell EVA resists water absorption, but the assembled joint should be designed separately if it must meet an ingress rating.
Can the pads be delivered on a liner for fast assembly?
Yes. Kiss-cut sheets, rolls and individual parts with pull tabs are available.
What should a drawing include for custom adhesive-backed eva foam pads?
Include pad footprint, compressed gap, target substrate and required adhesive layout.
Can custom adhesive-backed eva foam pads be supplied for production assembly?
Yes. Specify compression target, liner type and whether parts are supplied as singles, strips or kiss-cut sheets. Delivery format, liner configuration and packaging are specified for the assembly workflow.
How is the right custom adhesive-backed eva foam pads construction selected?
Choose EVA for light-duty support and clean die-cut edges; select cross-linked PE for firmer spacers or silicone foam for higher heat. The drawing and operating conditions establish the final construction.
