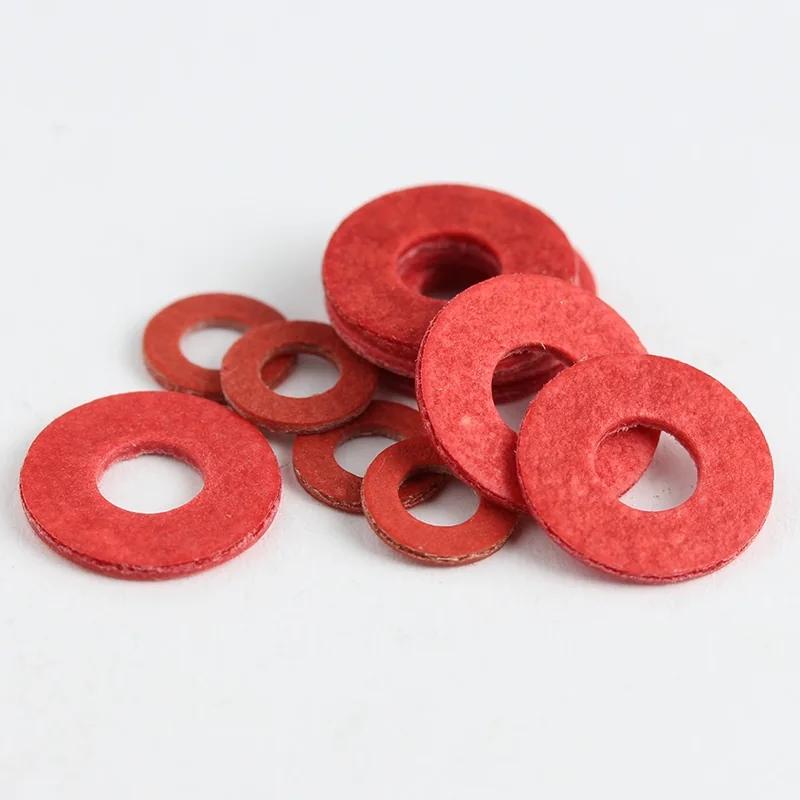

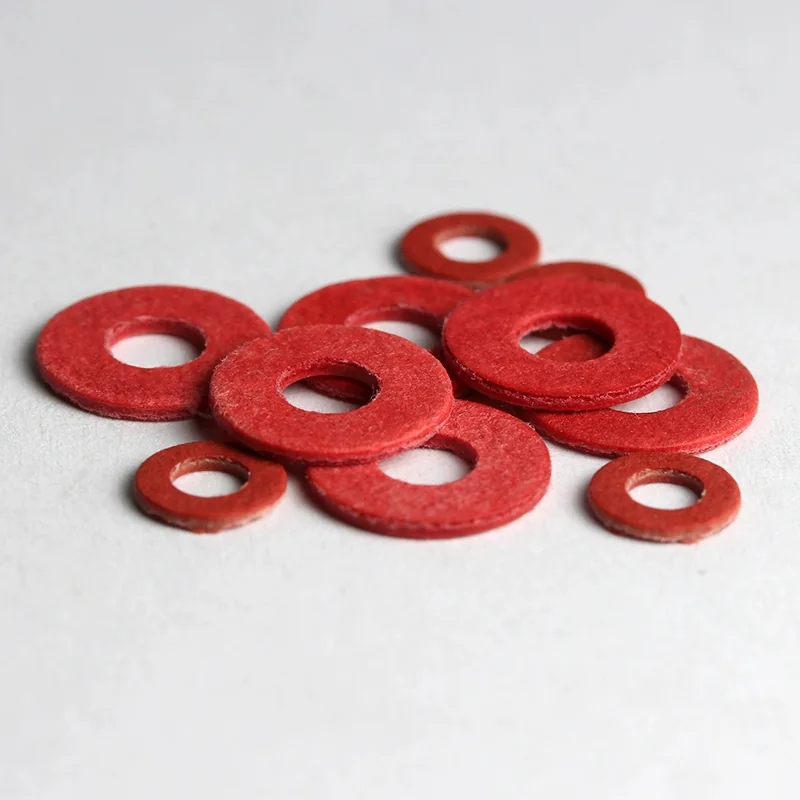

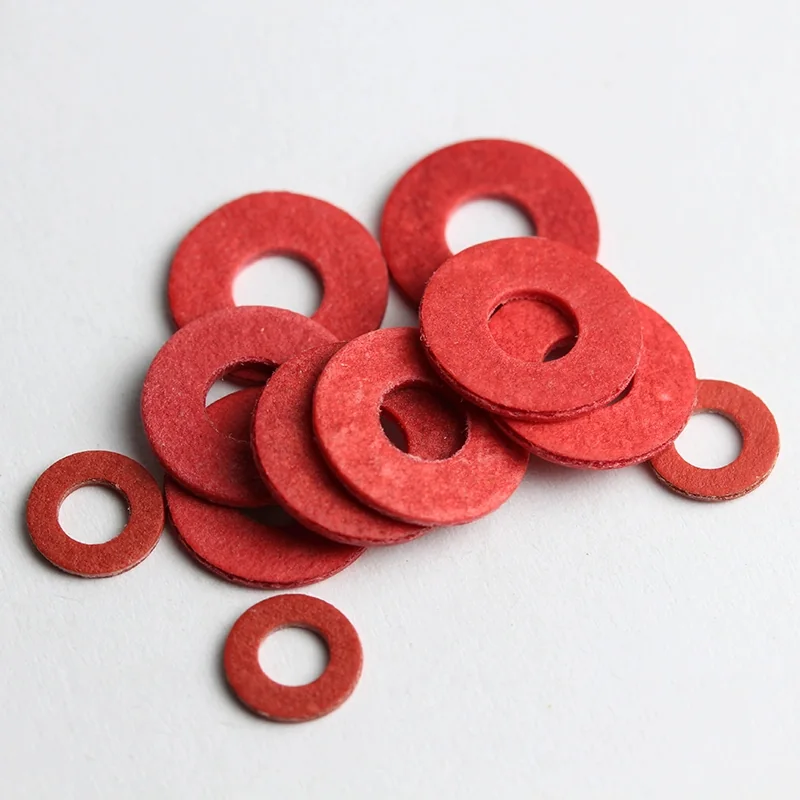

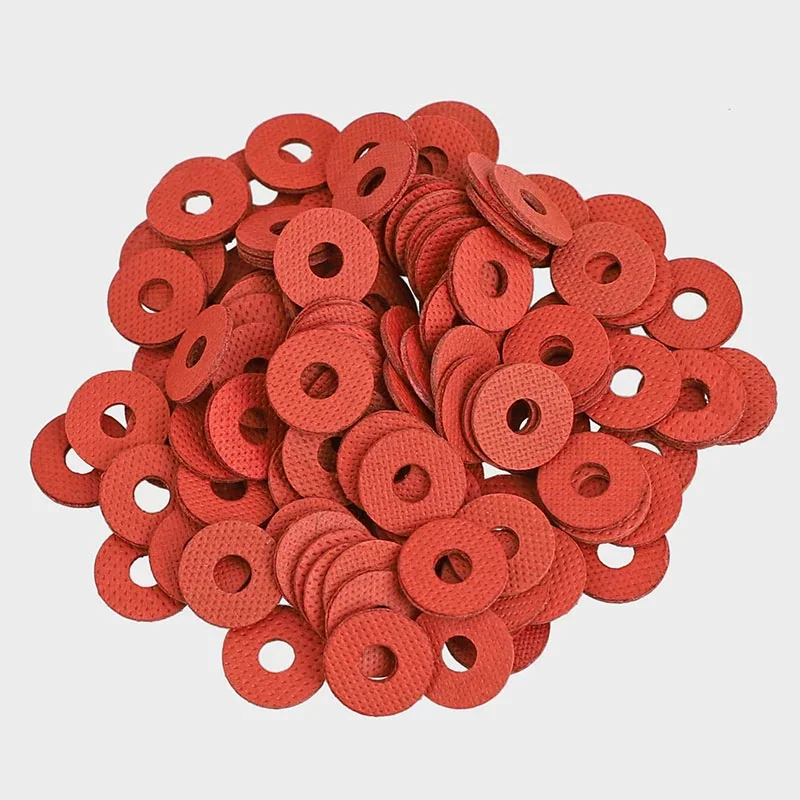

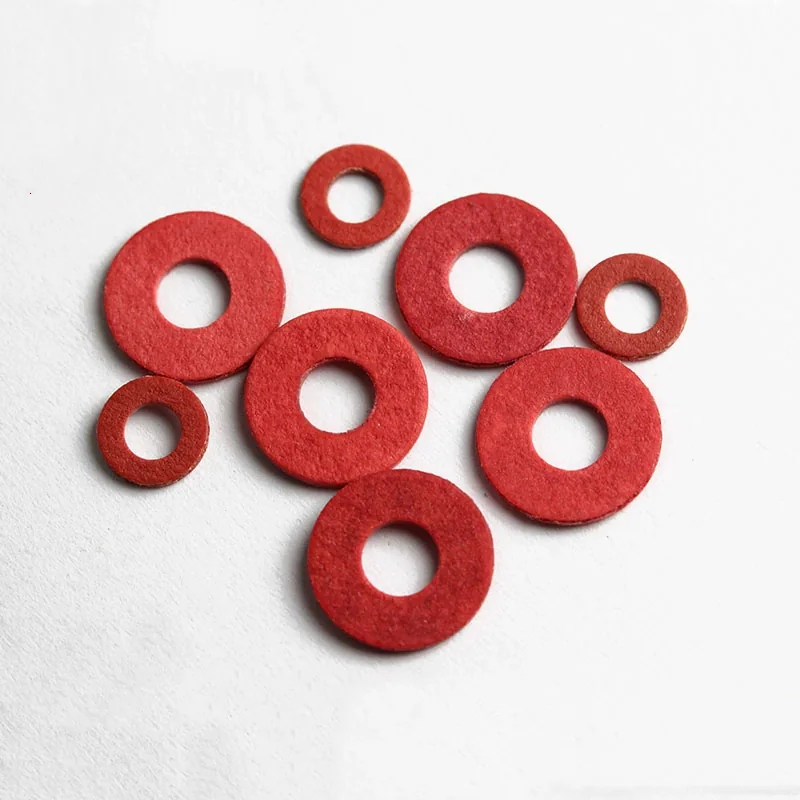

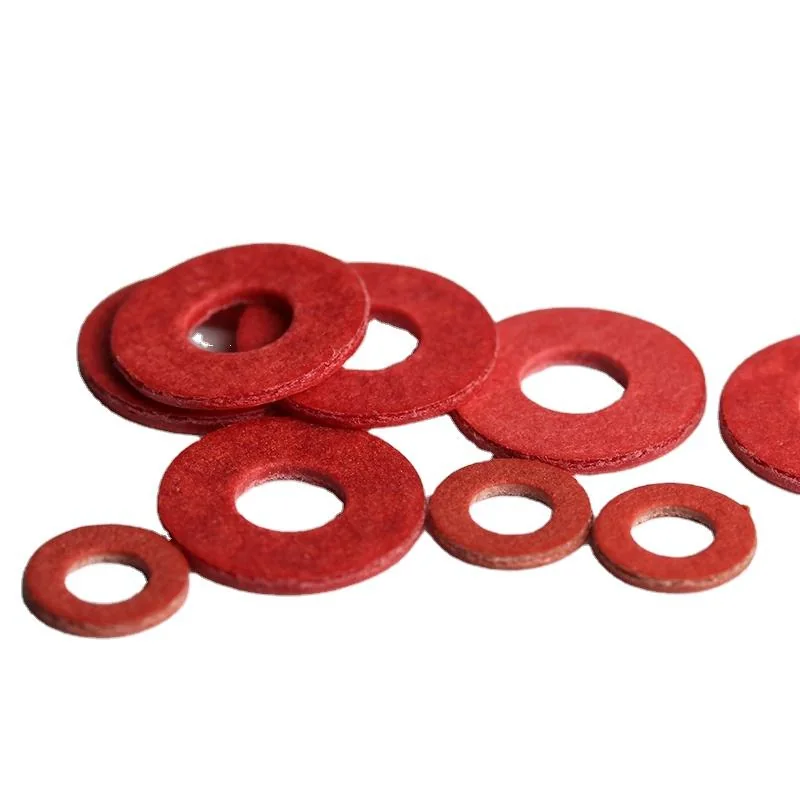

Red Fiber Electrical Insulating Washers
Rigid red-fiber washers that electrically isolate screws and terminals while spreading light mechanical load.
Custom and standard-size vulcanized fiber washers for non-conductive spacing, electrical isolation and hardware protection.
Engineered Red Fiber Electrical Insulating Washers
Red fiber washers are punched from dense vulcanized fiber sheet to provide a hard, machinable electrical barrier between conductive hardware and the surrounding assembly. They are useful in dry electrical assemblies where a rigid insulating spacer is needed.
Material approach
Vulcanized fiber offers a thin, rigid and economical non-metallic washer with better compressive stability than soft foam.
Key features
- Electrically non-conductive
- rigid punched form
- standard metric sizes
- low profile
- custom ID and OD.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Material | Vulcanized fiber paper |
|---|---|
| Thickness range | 0.2-3 mm |
| Typical thickness | 0.5-1.0 mm |
| Size range | M2-M12 standard sizes; custom ID and OD available |
| Temperature range | Typically -20 to 105 C in dry service |
| Hardness range | Rigid sheet; Shore hardness not typically specified |
| Tolerance | Typically +/-0.10 mm punched profile on small washers |
| Standards | RoHS and REACH declarations; material-specific dielectric test data on request. |
MATERIAL SELECTION
Red Fiber Electrical Insulating Washers Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Primary strength | Selection focus | Best fit |
|---|---|---|---|
| Vulcanized fiber | Vulcanized fiber offers a thin, rigid and economical non-metallic washer with better compressive stability than soft foam. | Use vulcanized fiber for economical dry electrical isolation, nylon for tougher moisture resistance and phenolic laminate for more rigid high-performance insulation. | Electrical terminals, transformer hardware, circuit-board standoffs, low-voltage assemblies, fastener isolation and dry mechanical spacers. |
| fish paper | Good dielectric behavior in dry conditions, moderate mechanical strength, limited moisture resistance and a hard fiber surface. | Use vulcanized fiber for economical dry electrical isolation, nylon for tougher moisture resistance and phenolic laminate for more rigid high-performance insulation. | Electrical terminals, transformer hardware, circuit-board standoffs, low-voltage assemblies, fastener isolation and dry mechanical spacers. |
| phenolic laminate | Good dielectric behavior in dry conditions, moderate mechanical strength, limited moisture resistance and a hard fiber surface. | Use vulcanized fiber for economical dry electrical isolation, nylon for tougher moisture resistance and phenolic laminate for more rigid high-performance insulation. | Electrical terminals, transformer hardware, circuit-board standoffs, low-voltage assemblies, fastener isolation and dry mechanical spacers. |
PRODUCT EXAMPLES
Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Specify voltage, humidity, temperature and creepage requirements; fiber paper is best suited to dry, protected electrical assemblies.
DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Geometry and thickness
Keep sufficient radial material around the hole and avoid sharp burrs on mating hardware that can cut the washer.
Assembly performance
Moisture reduces the insulating reliability of cellulosic materials; choose PET, nylon or phenolic laminate when humidity or voltage demands are higher.
Production route
Specify voltage, humidity, temperature and creepage requirements; fiber paper is best suited to dry, protected electrical assemblies.
Applications / Where It Fits
Custom and standard-size vulcanized fiber washers for non-conductive spacing, electrical isolation and hardware protection. The final specification is established around the drawing and operating requirements.
When This Part May Not Be the Best Choice
Continuous water immersion, high-temperature electronics beyond the material limit, corrosive chemicals or high dielectric requirements requiring engineered laminates.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Manufacturing process | Punching, flatbed die cutting, laser cutting and sheet slitting |
| Adhesive options | None; optional double-sided tape for assembly retention on non-load-bearing parts. |
| Surface options | Red fibre finish, natural fibre, insulating varnish and custom punched kits. |
| Custom options | ID, OD, thickness, slots, tabs, colour, kitted assortments and sheet format. |
| Standards | RoHS and REACH declarations; material-specific dielectric test data on request. |
Drawing Requirements
Recommended drawing formats
Please include
- fastener size
- required dielectric isolation
- operating humidity
- thickness and creepage clearance
For a precise red fiber electrical insulating washers quotation, provide fastener size, required dielectric isolation, operating humidity, thickness and creepage clearance.
Frequently Asked Questions
Are red fiber washers electrically insulating?
Yes, when used dry and within the selected material voltage and environmental limits.
Can the washer sizes be customized?
Yes. The inner diameter, outer diameter, thickness and slots can be punched to a drawing.
Are fiber washers waterproof?
No. Vulcanized fiber can absorb moisture, so it is not the first choice for wet or outdoor electrical assemblies.
What material is better for higher humidity?
Nylon, PET or suitable laminate materials generally provide more reliable moisture resistance.
What should a drawing include for red fiber electrical insulating washers?
Include fastener size, required dielectric isolation, operating humidity, thickness and creepage clearance.
Can red fiber electrical insulating washers be supplied for production assembly?
Yes. Specify voltage, humidity, temperature and creepage requirements; fiber paper is best suited to dry, protected electrical assemblies. Delivery format, liner configuration and packaging are specified for the assembly workflow.
How is the right red fiber electrical insulating washers construction selected?
Use vulcanized fiber for economical dry electrical isolation, nylon for tougher moisture resistance and phenolic laminate for more rigid high-performance insulation. The drawing and operating conditions establish the final construction.
